Engine Control System
›
Injector
›
Schematic Diagrams
›
Circuit Diagram
›
Notes
Circuit Diagram: Notes

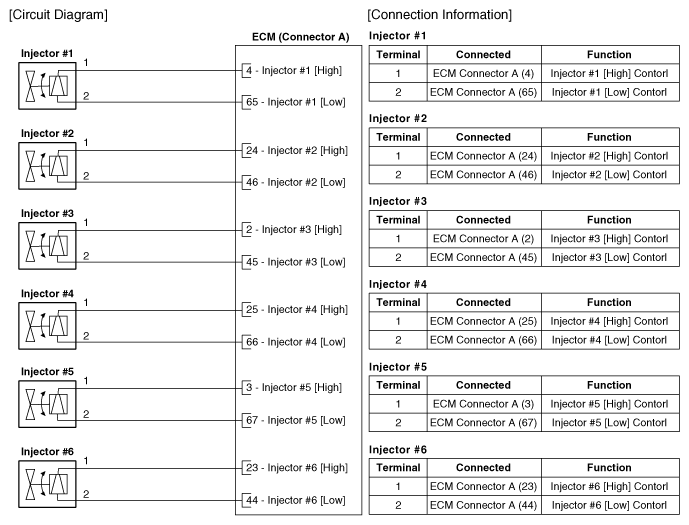

Fig 1: Fuel Injector Circuit Diagram And Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
