Cadenza Technology
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Oil Pressure Sensor (OPS)
›
Schematic Diagrams
›
Circuit Diagram
›
Notes
Circuit Diagram: Notes

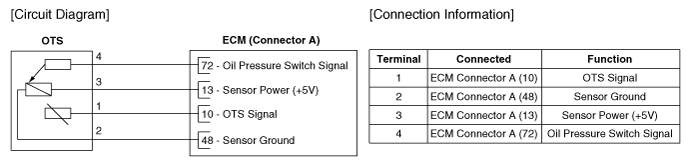

Fig 1: Oil Temperature Sensor Circuit Diagram And Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
