Fuel Pump Control Module (FPCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

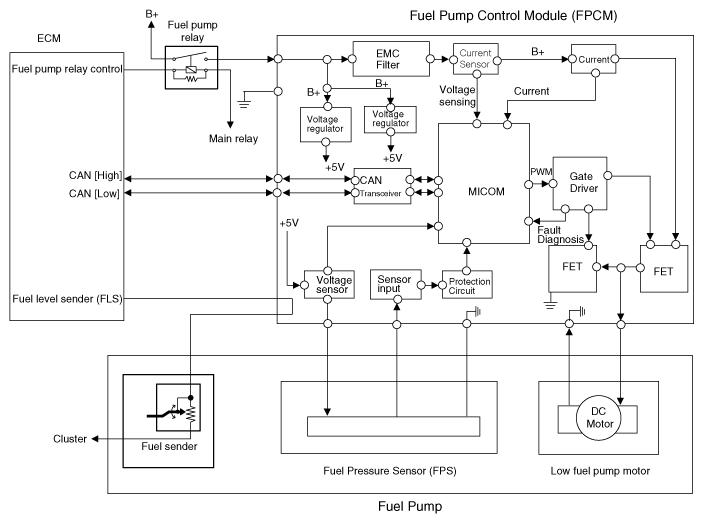

Fig 1: Fuel Pump Control Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
