Engine Control System Diagnosis (1 Of 6)
›
DTC P0090-00: Fuel Pressure Regulator 1 Control Circuit/Open
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

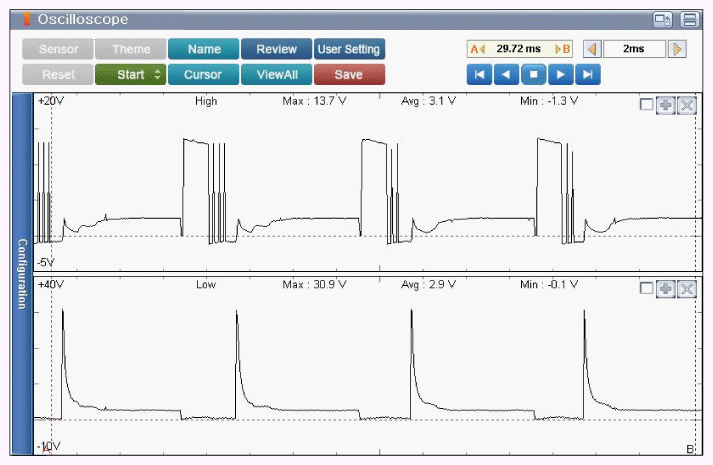

Fig 1: Screen Display - Normal Waveforms Of FPCV At Engine Idle
Courtesy of KIA MOTORS AMERICA, INC.

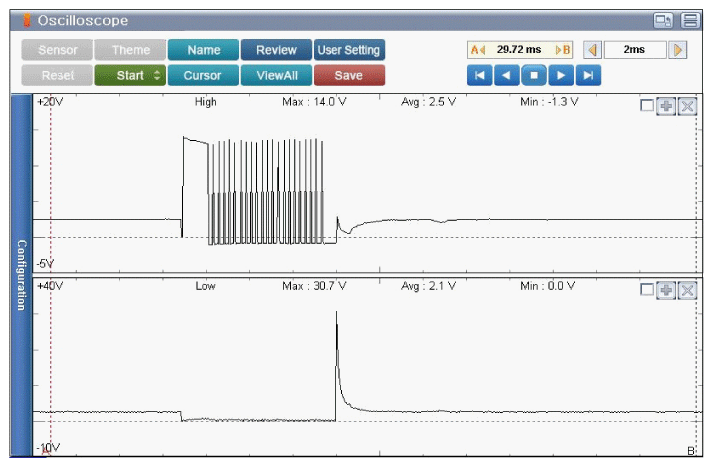

Fig 2: Screen Display - Normal Waveforms Of FPCV At Approx. 2000RPM
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
