Visual Check

Check Camshaft and crankshaft alignment.

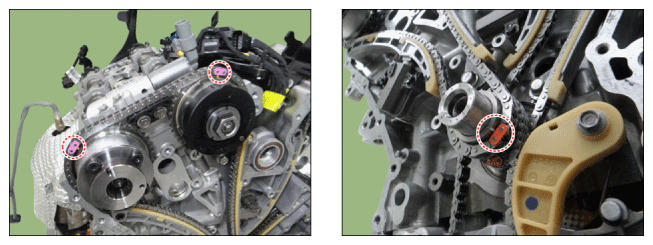

Fig 1: Scantool Display - Timing Position Of Camshafts And Crankshaft (Bank 1)
Courtesy of KIA MOTORS AMERICA, INC.

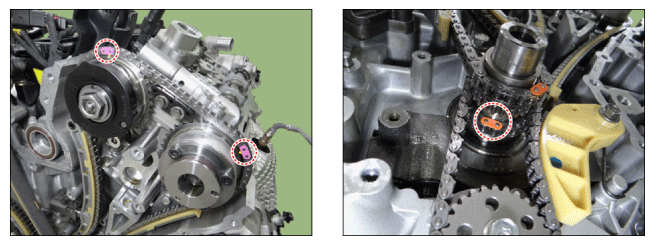

Fig 2: Scantool Display - Timing Position Of Camshafts And Crankshaft (Bank 2)
Courtesy of KIA MOTORS AMERICA, INC.
Have any problems been found?
YES
- Repair as necessary and then go to "Verification Of REPAIR " procedure.
NO
- Go to "Check Fuel Pressure " procedure.
