Repair Procedures: Disassembly

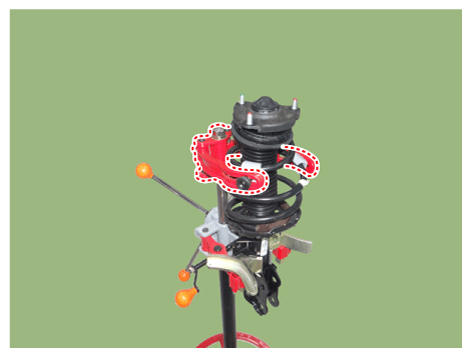

Using a strut spring compressor, compress the coil spring.

Fig 1: Compressing Coil Spring
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- To prevent peeling the paint of coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
- Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.

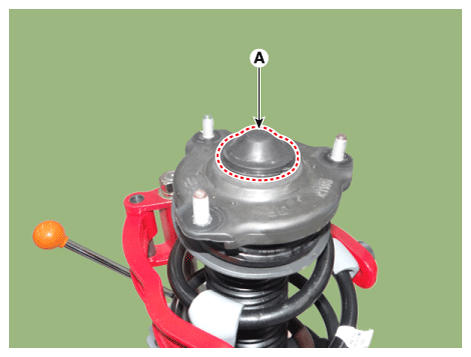

Remove the insulator cap (A).

Fig 2: Locating Insulator Cap
Courtesy of KIA MOTORS AMERICA, INC.

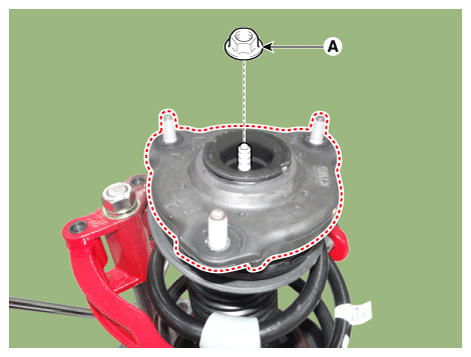

Loosen the insulator nut (A) and then remove the insulator.
Tightening torque:

78.5 - 88.2 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.0 lb.ft)

Fig 3: Locating Insulator Nut
Courtesy of KIA MOTORS AMERICA, INC.

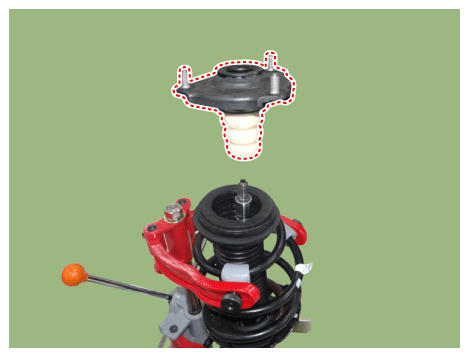

Remove the strut bearing, spring upper bad, rubber.

Fig 4: Remove Strut Bearing
Courtesy of KIA MOTORS AMERICA, INC.

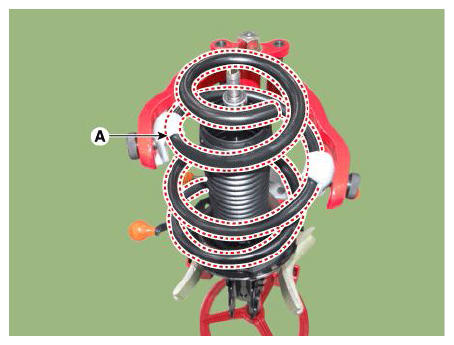

Remove the spring (A) and dust cover (B).

Fig 5: Locating Spring
Courtesy of KIA MOTORS AMERICA, INC.

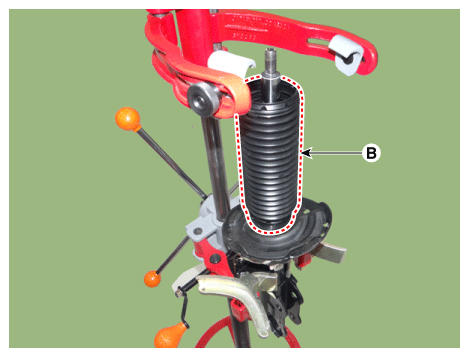

Fig 6: Locating Dust Cover
Courtesy of KIA MOTORS AMERICA, INC.

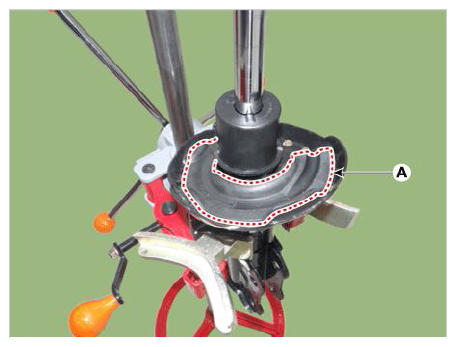

Remove the spring lower pad (A).

Fig 7: Locating Spring Lower Pad
Courtesy of KIA MOTORS AMERICA, INC.
