Repair Procedures: Removal

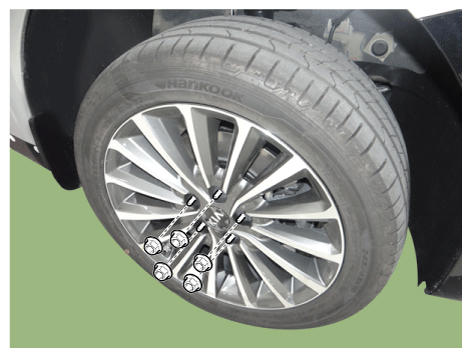

Remove the wheel and tire.
Tightening torque:

88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

Fig 1: Remove Wheel & Tire With Lug Nuts
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts when removing the wheel & tire.

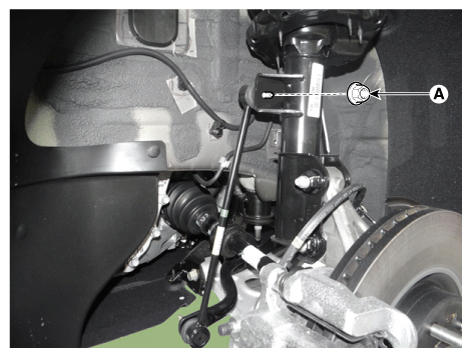

Remove the stabilizer link nut (A).
Tightening torque:

98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)

Fig 2: Locating Stabilizer Link Nut
Courtesy of KIA MOTORS AMERICA, INC.

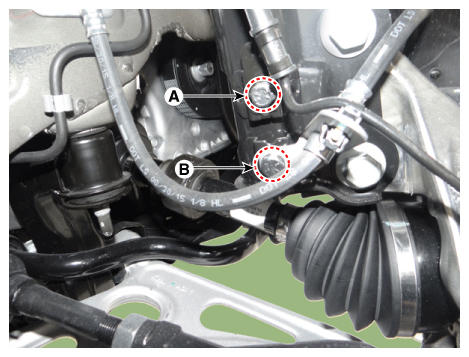

Remove the wheel speed sensor bracket bolts (A) and brake hose bracket bolt (B).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Fig 3: Locating Wheel Speed Sensor Bracket With Bolts
Courtesy of KIA MOTORS AMERICA, INC.

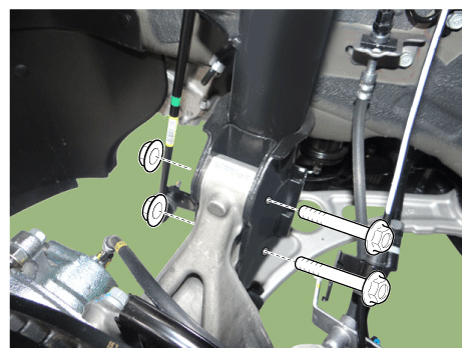

Loosen the strut mounting bolts and then remove the hub and knuckle assembly from the strut assembly.
Tightening torque:

196.1 - 215.7 N.m (20.0 - 22.0 kgf.m, 144.7 - 159.1 lb.ft)

Fig 4: Locating Strut Mounting Bolts & Nuts
Courtesy of KIA MOTORS AMERICA, INC.

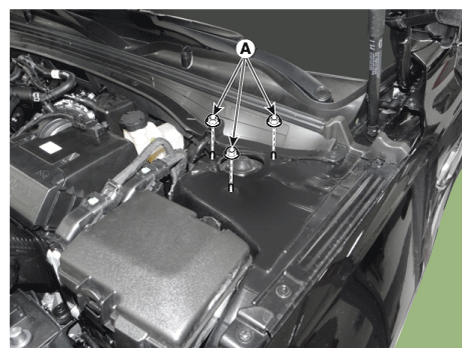

Remove the strut lock nuts (A).
Tightening torque:

53.9 - 73.5 N.m (5.5 - 7.5 kgf.m, 39.8 - 54.2 lb.ft)

Fig 5: Locating Strut Lock Nuts
Courtesy of KIA MOTORS AMERICA, INC.
