Monitor KDS/GDS Data

Connect KDS/GDS to Data Link Connector (DLC).
Engine "ON".
Operate Shift Lever.
Monitor "Shift Lever Switch" and "Sports Mode Switch" parameter in "Current Data" with KDS/GDS.
Specification : Refer to Fig 1 below

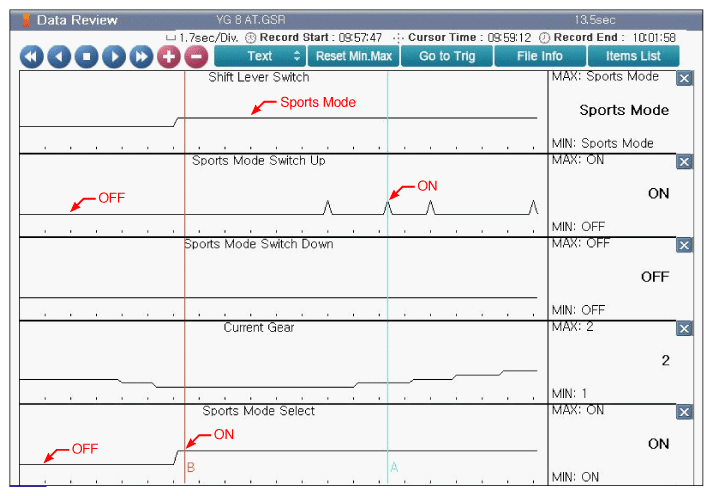

Fig 1: Screen Display - Normal Data On Operating Shift Lever Switch
Courtesy of KIA MOTORS AMERICA, INC.
Is displayed parameter within specification?
YES
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "Verification Of REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
