Engine Room Under Cover

Remove the engine room front under cover.
Remove the engine room under cover (A).
Tightening torque :

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

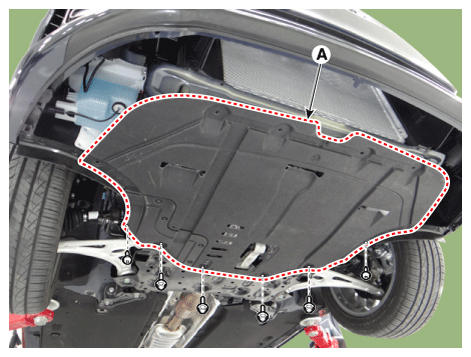

Fig 1: Locating Engine Room Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
