Repair Procedures: Inspection

Switch "OFF" ignition.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY REMOVAL ")
Disconnect the main connector (A).

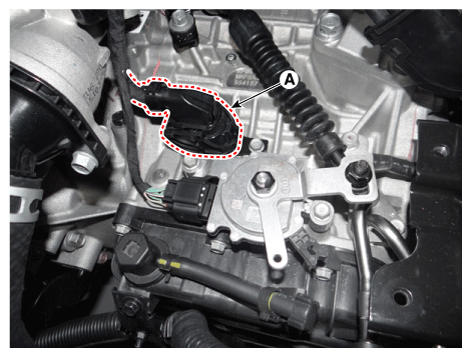

Fig 1: Locating Main Connector
Courtesy of KIA MOTORS AMERICA, INC.
Measure the resistance between power terminal (14) and signal terminal (1).
Specification : 5.1 ± 0.3 Ω

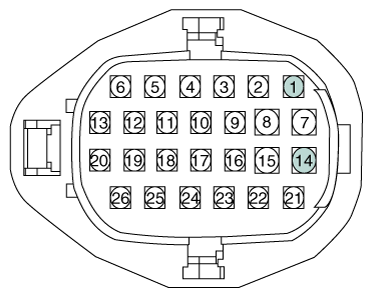

Fig 2: Measure The Resistance Between Power Terminal (14) & Signal Terminal (1)
Courtesy of KIA MOTORS AMERICA, INC.
