Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

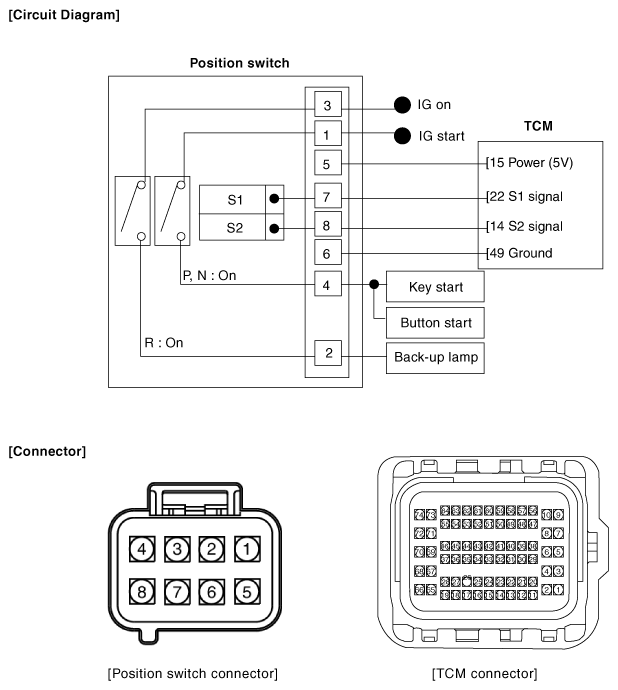

Fig 1: Position Switch Circuit Diagram With Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
