Components And Components Location: Components

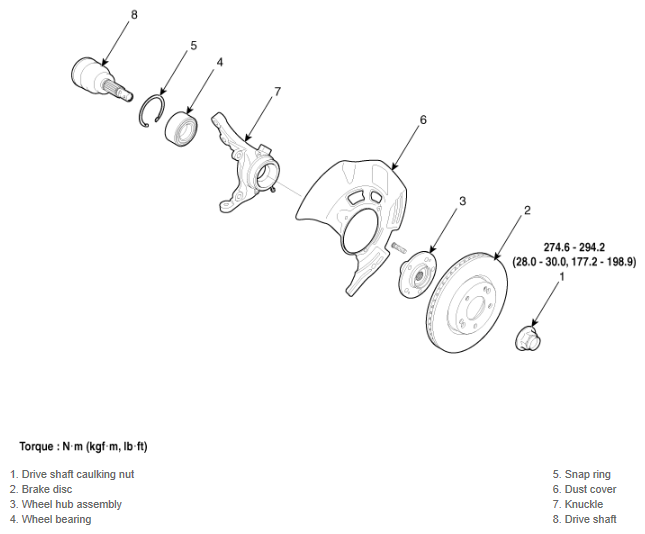

Fig 1: Front Hub/Knuckle Components With Torque Specification
G12163643Courtesy of KIA MOTORS AMERICA, INC.
