Cluster Module Diagnosis
›
DTC B1020-55: TPMS Present Error
›
Component Location
Component Location

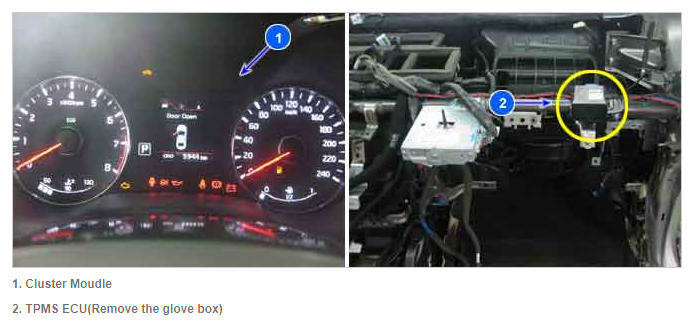

Fig 1: Locating Cluster Module And TPMS ECU (Remove Glove Box)
Courtesy of KIA MOTORS AMERICA, INC.
