Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat side cover (A).
    Fig 1: Seat Side Cover
    G12164732Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the power seat control switch connector (A).
    Fig 2: Power Seat Control Switch Connector
    G12164733Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the power seat control switch (A) after loosening the mounting screw.

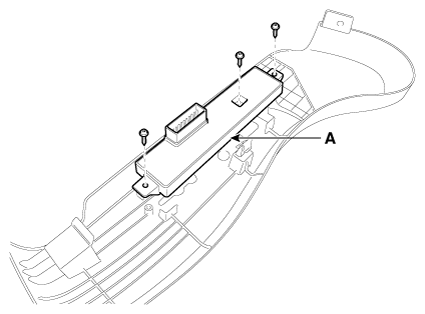

Fig 3: Power Seat Control Switch With Mounting Screw
G12164734Courtesy of KIA MOTORS AMERICA, INC.
