Repair Procedures: Inspection

Disconnect the IMS control switch connector.

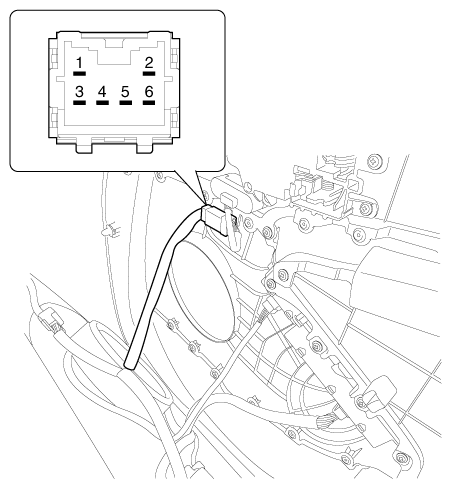

Fig 1: IMS Power Seat Control Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
With the power IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the IMS control switch.

Fig 2: IMS Power Seat Control Terminals Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
