Smart Key Status Check

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "SMK STATUS INFO".

Fig 1: Scantool Display - ID Register

Courtesy of KIA MOTORS AMERICA, INC.

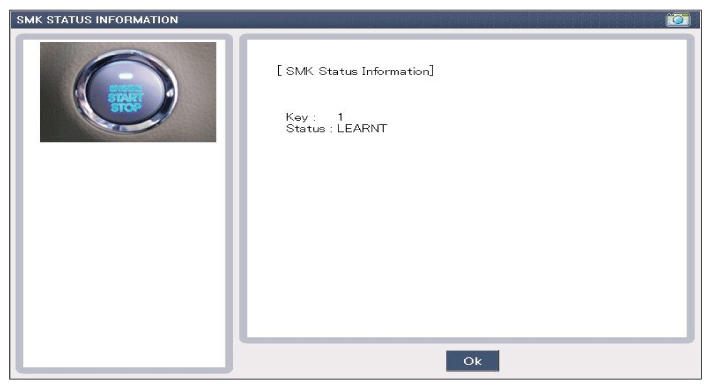

Fig 2: Scantool Display - SMK Status Information

Courtesy of KIA MOTORS AMERICA, INC.
