Repair Procedures: Replacement

Information

• When removing the clips, use a clip remover.

1. Remove the head lamps.

   (Refer to Body Electrical System - "HEAD LAMPS ")

2. Loosen the front wheel guard mounting clips and screws.

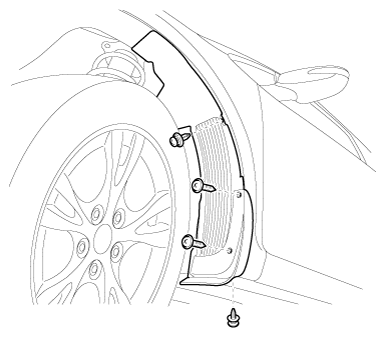

   Fig 1: Front Wheel Guard Mounting Clips And Screws

   Courtesy of KIA MOTORS AMERICA, INC.
3. After loosening the mounting screws, then remove the front bumper side mounting bracket (A).

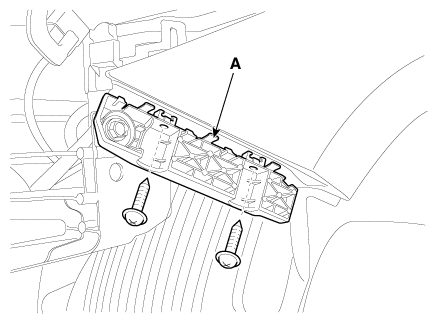

   Fig 2: Locating Front Bumper Side Mounting Bracket With Mounting Screws

   Courtesy of KIA MOTORS AMERICA, INC.
4. After loosening the mounting bolts and nut, then remove the fender assembly (A).

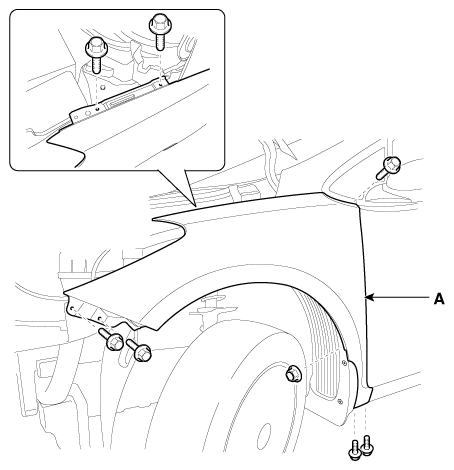

   Fig 3: Locating Fender Assembly With Mounting Bolts And Nut

   Courtesy of KIA MOTORS AMERICA, INC.
5. Install in the reverse order of removal.

   Information

   • Replace any damaged clips.
