Electronic Stability Control (ESC) System
›
Troubleshooting
›
Standard Flow Of Diagnostic Troubleshooting
Standard Flow Of Diagnostic Troubleshooting

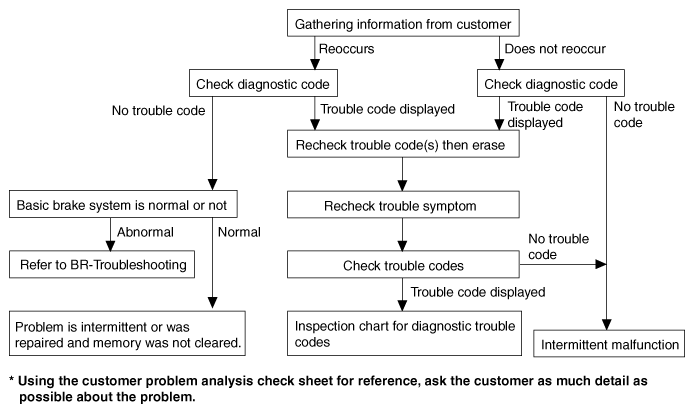

Fig 1: Standard Flow Chart Of Diagnostic Troubleshooting
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
