Home › Kia › 2017 › Forte EX › Repair and Diagnosis › Engine Mechanical › Lubrication System - 2.0L GDI › Components And Components Location › Components

Components And Components Location: Components

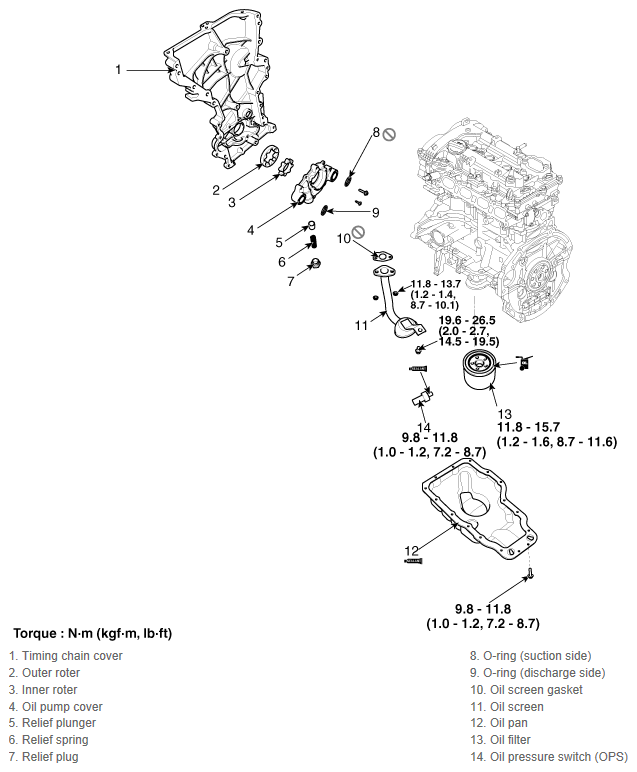

Fig 1: Lubrication System Components With Torque Specification
G12162936Courtesy of KIA MOTORS AMERICA, INC.
