Components And Components Location: Components

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

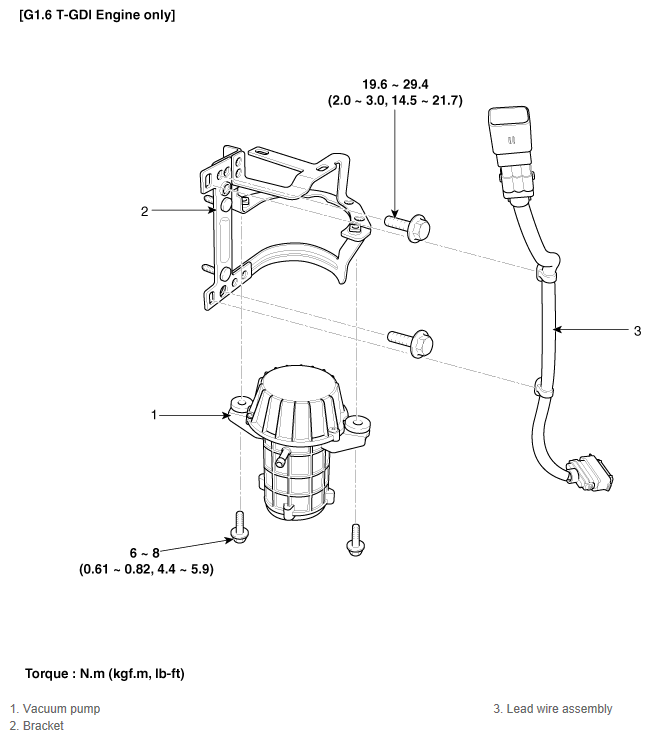

Fig 1: Locating Vacuum Pump Components With Torque Specification

Courtesy of KIA MOTORS AMERICA, INC.
