Repair Procedures: Replacement
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Put on gloves to protect your hands.
Information
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Be careful not to bend or scratch the trim and panels.

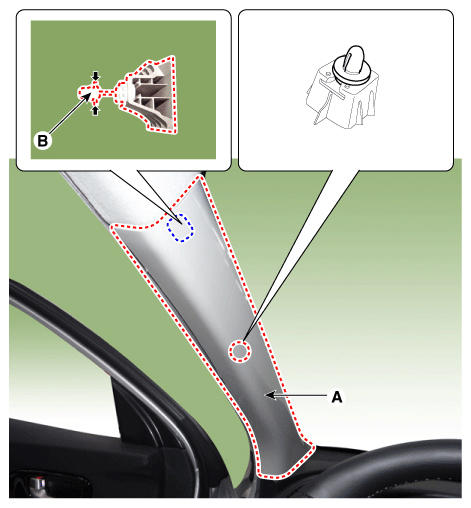

- Using a remover, remove the front pillar trim (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips.

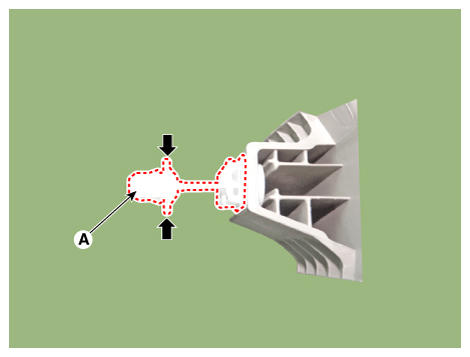

- Once the front pillar trim has been removed, replace the clip (A) with a new one.
