Removal And Installation

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the air cleaner.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  3. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  4. Drain the coolant.

    (Refer to Cooling System - "COOLANT ")

  5. Remove the cooling fan assembly.

    (Refer to Cooling System - "COOLING FAN ")

  6. Disconnect the radiator upper hose (A) from the radiator.

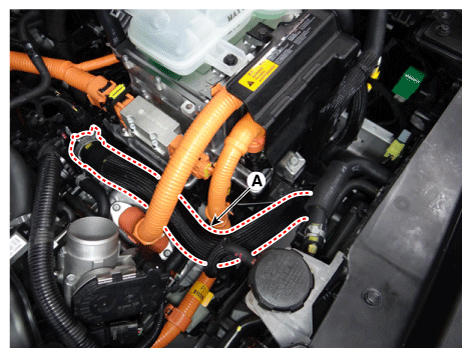

    Fig 1: Disconnecting Radiator Upper Hose From Radiator
    G12328670Courtesy of KIA MOTORS AMERICA, INC.
  7. Disconnect the radiator lower hose (A) from the radiator.

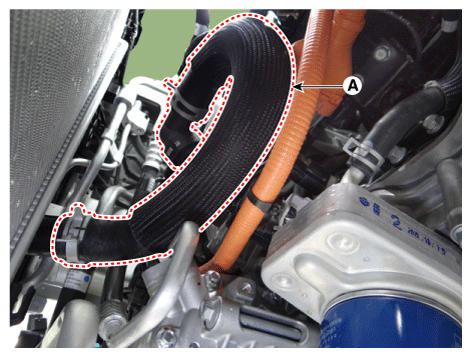

    Fig 2: Disconnecting Radiator Lower Hose From Radiator
    G12328671Courtesy of KIA MOTORS AMERICA, INC.
  8. Disconnect the radiator reservoir hose (A).

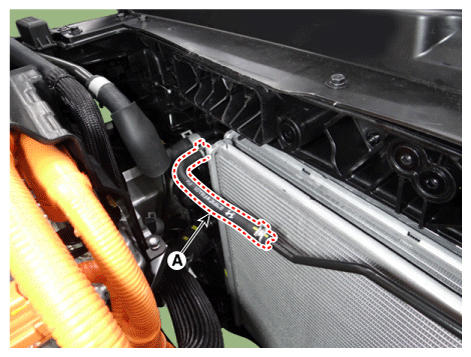

    Fig 3: Disconnecting Radiator Reservoir Hose
    G12328672Courtesy of KIA MOTORS AMERICA, INC.
  9. Separate the A/C pipe (A) from the radiator.

    Tightening Torque  :

    4.9 - 8.3 N.m (0.5 - 0.8 kgf.m, 3.6 - 6.1 lb.ft)

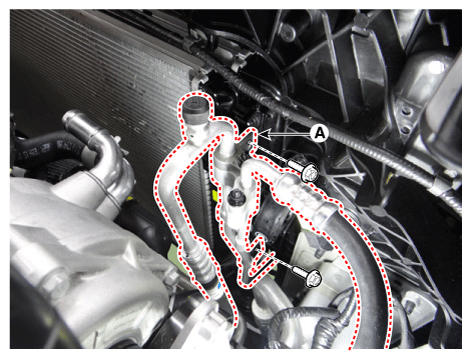

    Fig 4: Separating A/C Pipe From Radiator
    G12328673Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the radiator upper mounting bracket (A).

    Tightening Torque  :

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

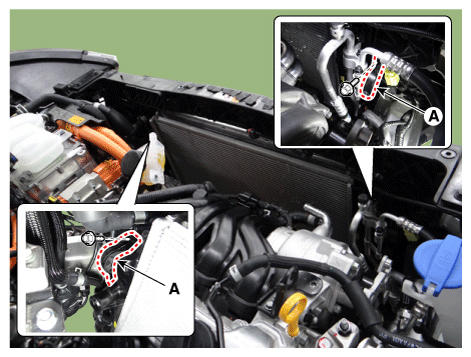

    Fig 5: Removing Radiator Upper Mounting Bracket
    G12328674Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the radiator upper mounting bolt (A).

    Tightening Torque  :

    4.9 - 8.3 N.m (0.5 - 0.8 kgf.m, 3.6 - 6.1 lb.ft)

    [RH]

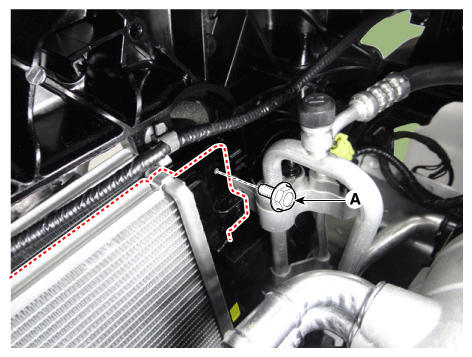

    Fig 6: Removing Radiator Upper Mounting Bolt (RH)
    G12328675Courtesy of KIA MOTORS AMERICA, INC.

    [LH]

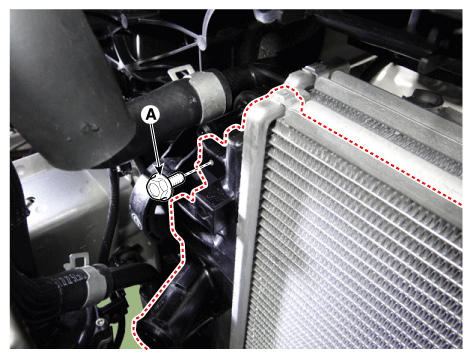

    Fig 7: Removing Radiator Upper Mounting Bolt (LH)
    G12328676Courtesy of KIA MOTORS AMERICA, INC.
  12. Remove the radiator lower mounting bolt (A).

    Tightening Torque  :

    4.9 - 8.3 N.m (0.5 - 0.8 kgf.m, 3.6 - 6.1 lb.ft)

    [RH]

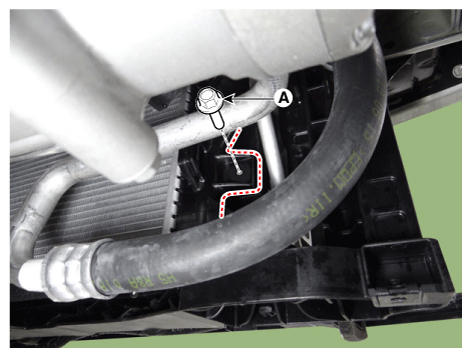

    Fig 8: Removing Radiator Lower Mounting Bolt (RH)
    G12328677Courtesy of KIA MOTORS AMERICA, INC.

    [LH]

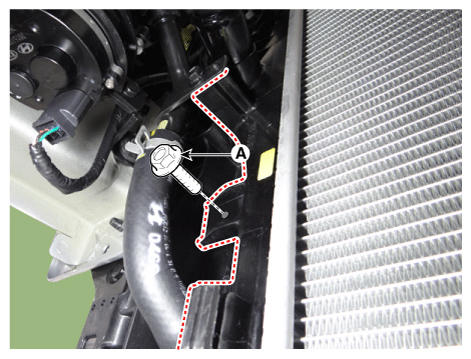

    Fig 9: Removing Radiator Lower Mounting Bolt (LH)
    G12328678Courtesy of KIA MOTORS AMERICA, INC.
  13. Remove the inverter radiator lower pipe (A) from the radiator.

    Tightening Torque  :

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

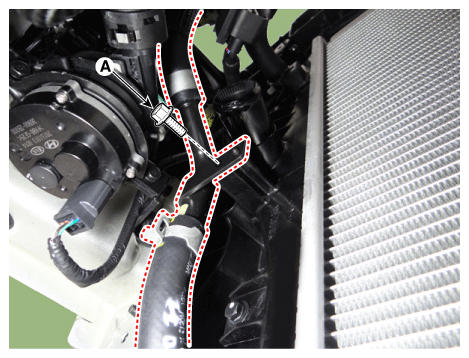

    Fig 10: Removing Inverter Radiator Lower Pipe From Radiator
    G12328679Courtesy of KIA MOTORS AMERICA, INC.
  14. Remove the radiator (A).

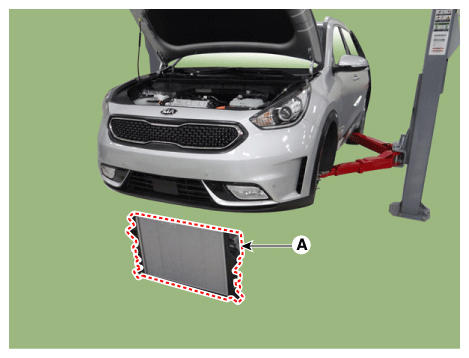

    Fig 11: Removing Radiator
    G12328680Courtesy of KIA MOTORS AMERICA, INC.
  15. Install in the reverse order of removal.
  16. Fill the radiator with coolant and check for leaks.
