MDPS System A/S Work-Flow: Notes

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

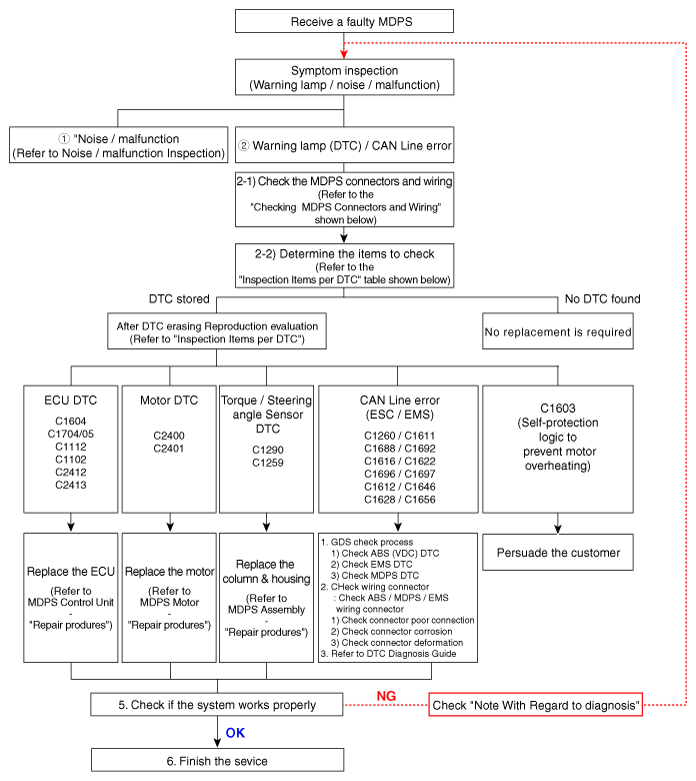

Fig 1: MDPS System A/S Work-Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
