Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable.
  2. Turn the steering wheel so that the front wheels are facing straight ahead.
  3. Remove the driver airbag module.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  4. Disconnect the connector.

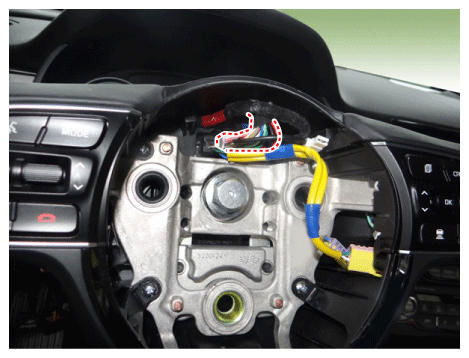

    Fig 1: Disconnecting Connector
    G12329615Courtesy of KIA MOTORS AMERICA, INC.
  5. Loosen the bolt (A) and then remove the steering wheel.

    Tightening Torque:

    39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb.ft)

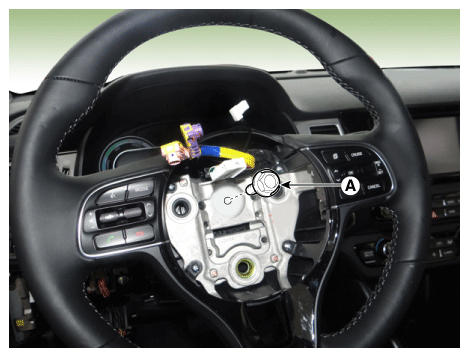

    Fig 2: Removing Steering Wheel Bolt
    G12329616Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • Do not hammer on the steering wheel to remove it; it may damage the steering column.
    • Do not reuse the bolt.
  6. Loosen the screw and then remove the lower shroud.

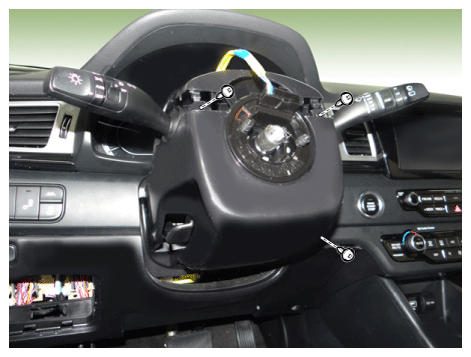

    Fig 3: Removing Lower Shroud Screw
    G12329617Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  8. Loosen the screw (A) and disconnect the connector (B) to remove the multifunction switch.

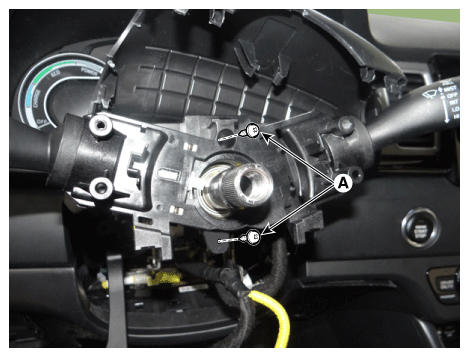

    Fig 4: Removing Multifunction Switch Screw
    G12329618Courtesy of KIA MOTORS AMERICA, INC.

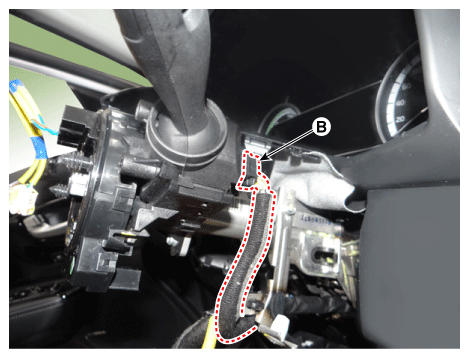

    Fig 5: Disconnecting Connector To Multifunction Switch
    G12329619Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the crash pad.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

  10. Remove the universal joint bolt (A).

    Tightening Torque:

    32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)

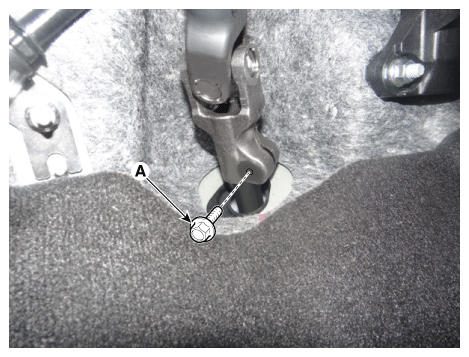

    Fig 6: Removing Universal Joint Bolt
    G12329620Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • Keep the neutral-range to prevent damaging the clock spring inner cable when steering the wheel.
    • Do not reuse the bolt.
  11. Disconnect the MDPS connector.

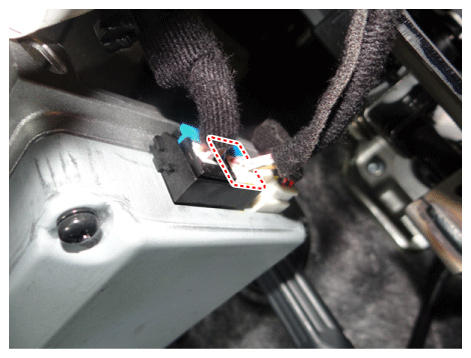

    Fig 7: Disconnecting MDPS Connector (1 Of 2)
    G12329621Courtesy of KIA MOTORS AMERICA, INC.

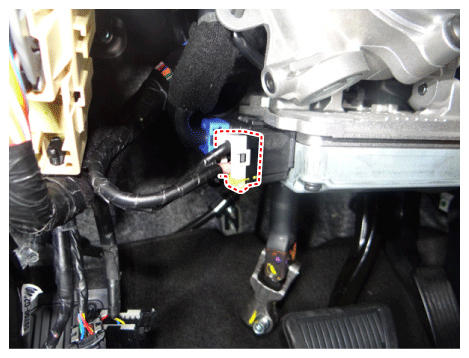

    Fig 8: Disconnecting MDPS Connector (2 Of 2)
    G12329622Courtesy of KIA MOTORS AMERICA, INC.
  12. Loosen the steering column nuts.

    Tightening Torque:

    24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

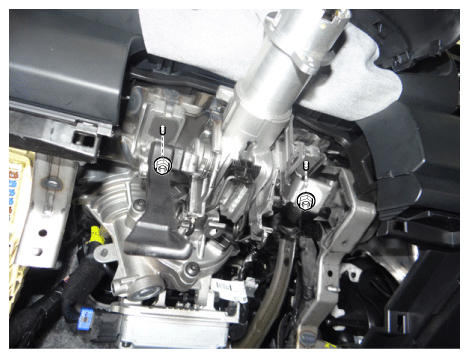

    Fig 9: Loosening Steering Column Nuts
    G12329623Courtesy of KIA MOTORS AMERICA, INC.
  13. Loosen the steering column bolt and then remove the steering column.

    Tightening Torque:

    53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb.ft)

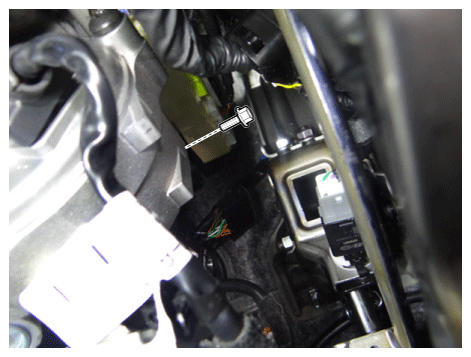

    Fig 10: Removing Steering Column Bolt
    G12329624Courtesy of KIA MOTORS AMERICA, INC.
  14. Install in the reverse order of removal.
