Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery/charging station.
WARNING: If PAG oil mixes into the POE oil of the system, dielectric breakdown may occur due to decreased volumetric resistivity and the A/C compressor may not work.

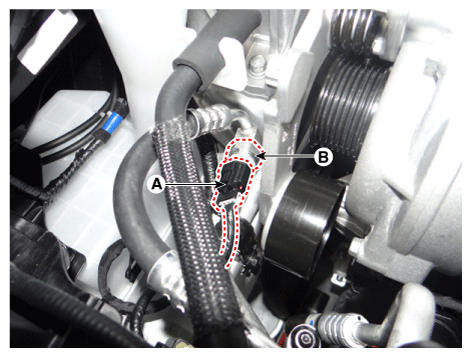

Disconnect the A/C pressure transducer connector (A).
Remove the A/C pressure transducer (A).

Fig 1: Removing A/C Pressure Transducer
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to bend the liquid & suction pipe.
Install in the reverse order of removal.
NOTE: When installing, replace it with a new O-ring (A).

Fig 2: Locating O-Ring

Courtesy of KIA MOTORS AMERICA, INC.
