Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio unit.

    (Refer to Body Electrical System - "AUDIO UNIT ")

  2. After loosening the mounting screws, remove the A/C & heater controller (A).

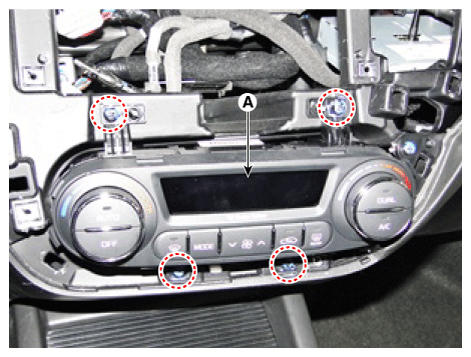

    Fig 1: Remove A/C & Heater Controller Unit
    G12166785Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the A/C & heater controller connector (A).

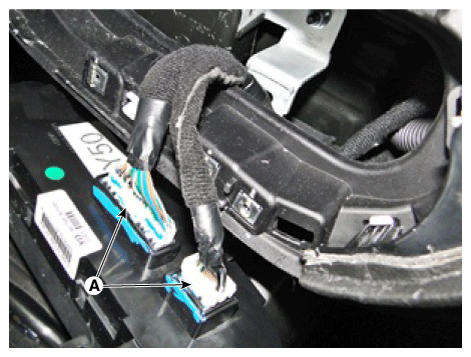

    Fig 2: Disconnect A/C & Heater Controller Connectors
    G12166786Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
