Repair Procedures: Inspection

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Troubleshooting for Speaker
1. Basic inspection of speaker
  Inspect the sound from speaker after verifying that the speaker mounting screws are removed and the wiring connector is connected to remove any possible vibration transmitted from body trims and surrounding parts.

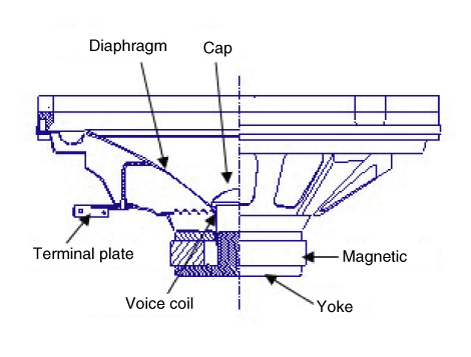

  Fig 1: Speaker Internal And Component Assembly
  Courtesy of KIA MOTORS AMERICA, INC.
2. Case Troubleshooting

No.	Case	Inspection/Remedy
1	Trembling sound	Before replacing the speaker, inspect that the mounting screw is installed normally. After re-installing the speaker, verify that no trembling sound is heard. When hearing a trembling sound again, replace the speaker with new one.
2	Noise	Check if the wiring connector is connected normally. If not, reconnect the wiring connector. In case of radio static, check if there is a noise from CD. If a noise is heard with the radio and CD on, replace the speaker with new one. NOTE: In case there is only radio static, this may be the cause of the poor radio reception. Thus the speaker needs no repair and replacement.

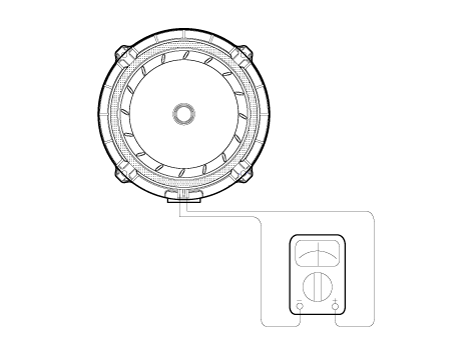

3	Speaker in operative	Inspection of the wiring connection between the battery and the speaker Before replacing the speaker, inspect the wiring connection between the battery and the speaker is normal. Check the supply power to the speaker and the resistance, then inspect the sound quality. If the speaker works poorly, replace it with new one.

CAUTION: When handling the speaker:

Dropping or rough handling of the speaker can cause damage.
Be careful not to spill water or oil on the speaker.
Caution when dealing with speaker because the diaphragm is paper and can be easily torn by impact and external force.
Electrical mishandling of speakers is not covered by manufacturers warranty.
