Repair Procedures: Replacement: [A/T]

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

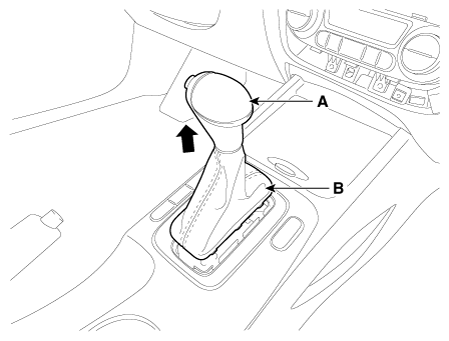

Remove the gear boot (B) and gear knob (A).

Fig 1: Removing Gear Boot And Gear Knob
Courtesy of KIA MOTORS AMERICA, INC.

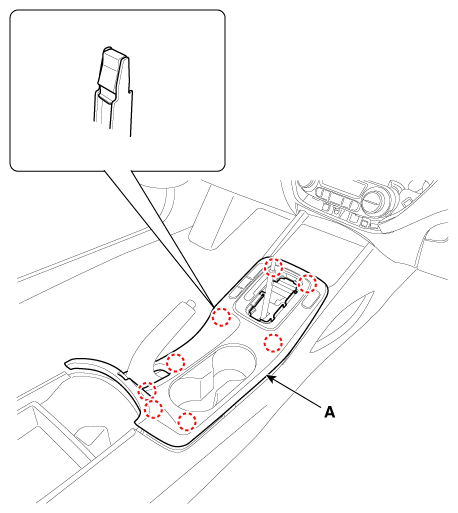

Using a screwdriver or remover, remove the console upper cover (A).

Fig 2: Locating Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.

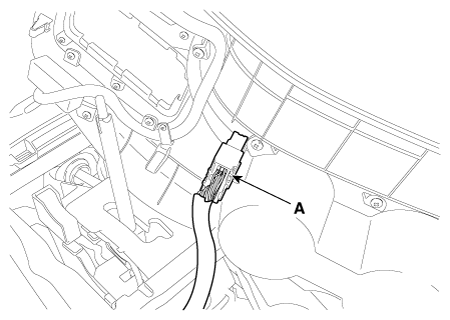

Disconnect the connectors (A).

Fig 3: Locating Connector
Courtesy of KIA MOTORS AMERICA, INC.

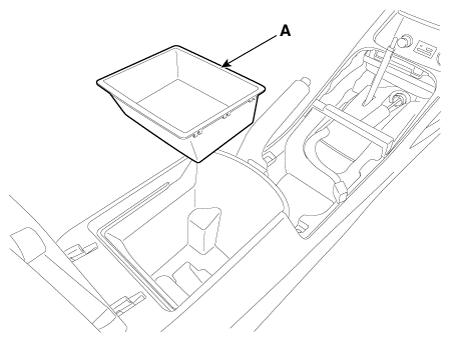

Remove the console armrest tray (A).

Fig 4: Locating Console Armrest Tray
Courtesy of KIA MOTORS AMERICA, INC.

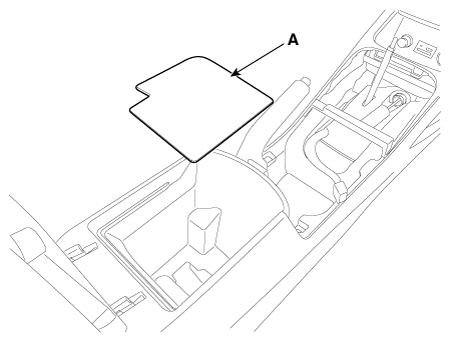

Remove the console armrest mat (A).

Fig 5: Locating Console Armrest Mat
Courtesy of KIA MOTORS AMERICA, INC.

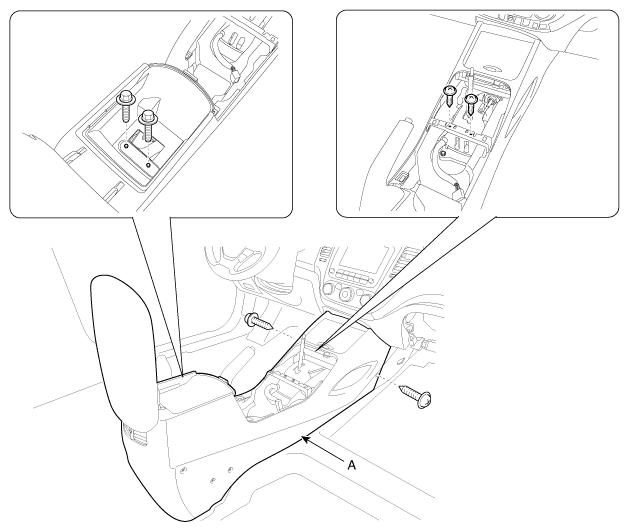

After loosening the mounting screws and bolts, then remove the floor console assembly (A).

Fig 6: Locating Floor Console Assembly With Mounting Screws & Bolts
Courtesy of KIA MOTORS AMERICA, INC.

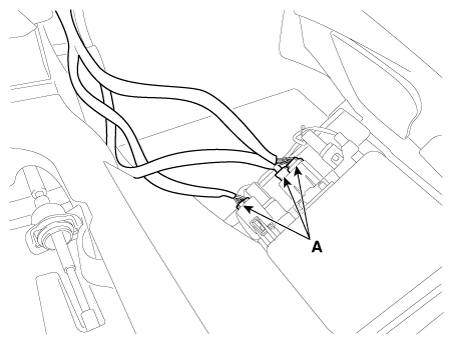

Disconnect the connectors (A).

Fig 7: Locating Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
