Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")
Remove the front door belt inside weatherstrip (A).
(4 Door, 5 Door)

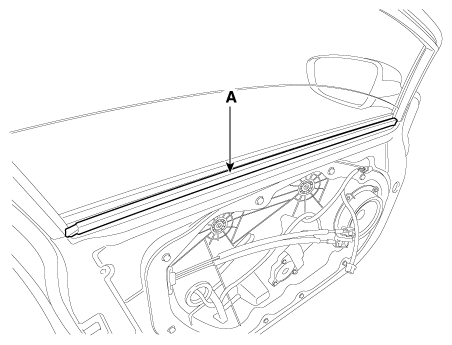

Fig 1: Front Door Belt Inside Weatherstrip (4 Door Or 5 Door)
Courtesy of KIA MOTORS AMERICA, INC.

(2 Door)

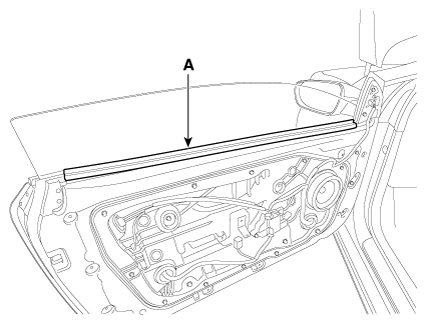

Fig 2: Front Door Belt Inside Weatherstrip (2 Door)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door window glass mounting hole plug.
CAUTION:
- Be careful not to drop the glass and/or scratch the glass surface.
Information
- Use the door switch to align the mounting hole/bolt with the hole in the door.
- If unable to operate the window motor, remove the motor and align the hole by hand.
Carefully adjust the front door window glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

(4 Door, 5 Door)

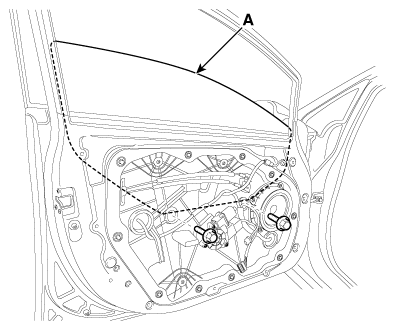

Fig 3: Front Door Window Glass (4 Door Or 5 Door)
Courtesy of KIA MOTORS AMERICA, INC.

(2 Door)

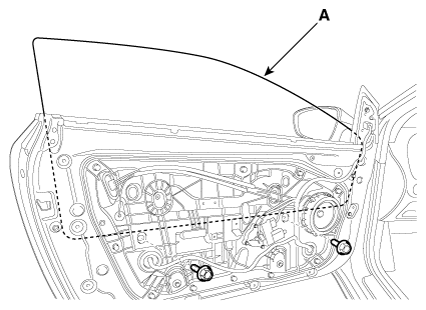

Fig 4: Front Door Window Glass (2 Door)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Roll the glass up and down to see if it moves freely without binding.
- Adjust glass position as needed.
- Make sure the door lock and opens properly.
- Replace any damaged clips.
