Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

(4Door, 5Door)

Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")

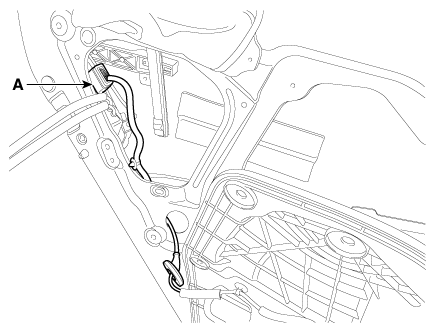

Disconnect the rear door main connector (A).

Fig 1: Locating Rear Door Main Connector
Courtesy of KIA MOTORS AMERICA, INC.

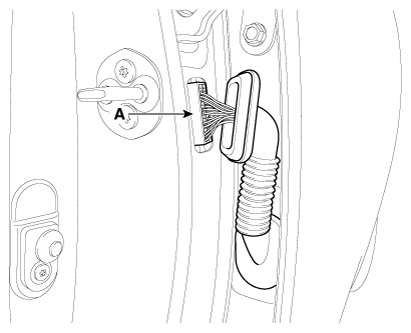

Disconnect the rear door latch connector (A).

Fig 2: Locating Rear Door Latch Connector
Courtesy of KIA MOTORS AMERICA, INC.

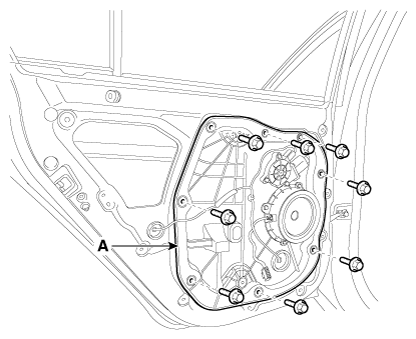

After loosening the mounting bolts, then remove the rear door module (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Fig 3: Locating Rear Door Module With Bolts
Courtesy of KIA MOTORS AMERICA, INC.

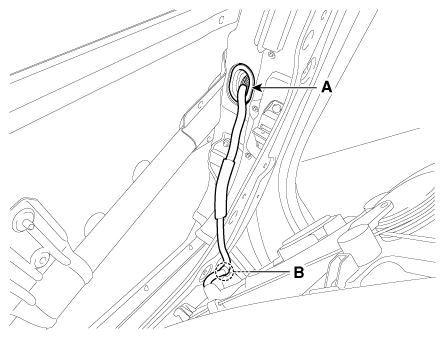

Remove the rear door main connector pad (A) and mounting clip (B).

Fig 4: Locating Rear Door Main Connector Pad & Mounting Clip
Courtesy of KIA MOTORS AMERICA, INC.

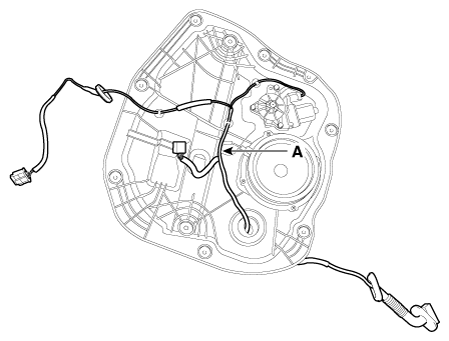

Disconnect the connectors and rear door module wiring harness (A).

Fig 5: Locating Rear Door Module Wiring Harness
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear speaker.
(Refer to Body Electrical System - "SPEAKERS ")
Remove the rear power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
Install in the reverse order of removal.
Information
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly
