Components And Components Location: Components

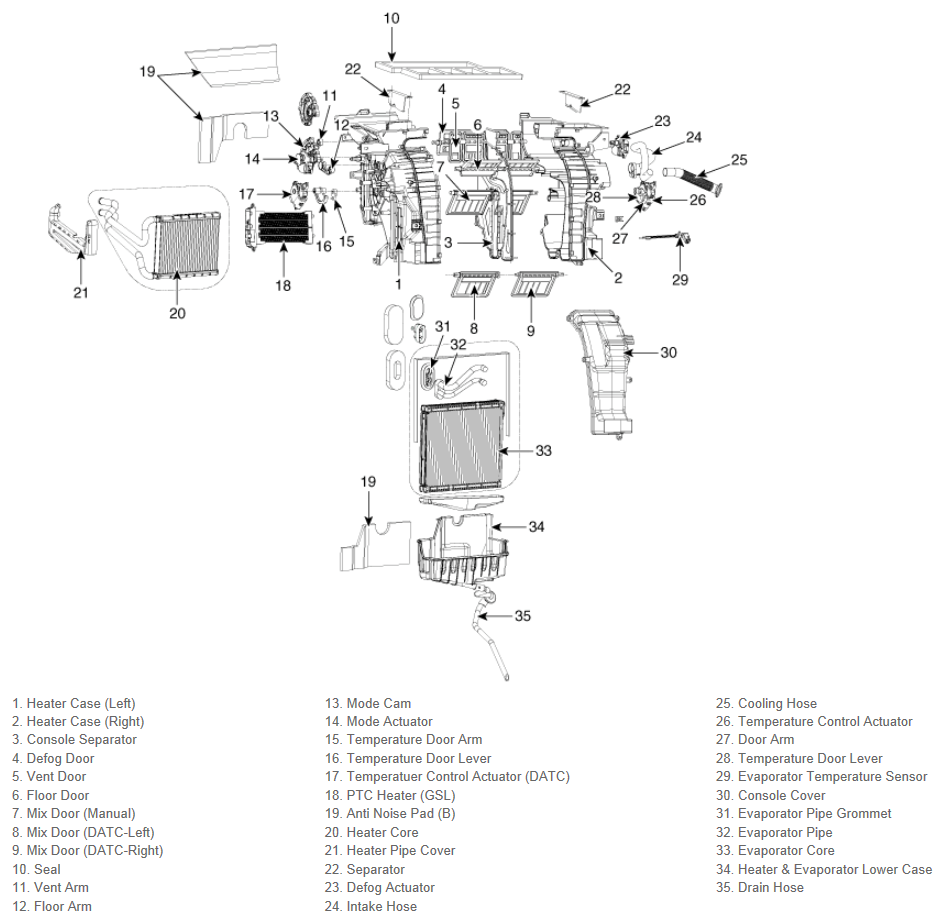

Fig 1: Heater Unit Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
