Repair Procedures: Removal

CAUTION: Handle the sensor with care.

Remove the tire.
(Refer to Tire/Wheels - "REPAIR PROCEDURES )
Remove the valve nut.

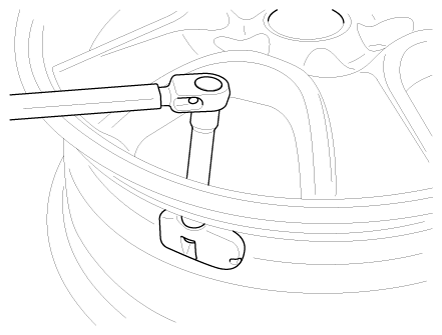

Fig 1: Removing Valve Nut
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: The valve nut should not be re-used.
Discard the valve assembly.
