FixVault
Home
›
Kia
›
2017
›
Forte EX
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Hydraulic System - 2.0L GDI
›
Valve Body
›
Components And Components Location
›
Components
Components And Components Location: Components

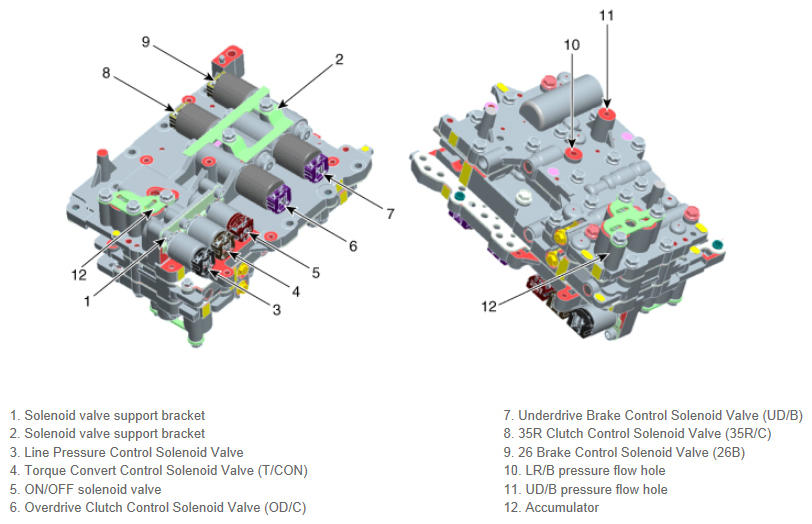

Fig 1: Locating Valve Body Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
