Automatic Transaxle Control System - 2.0L GDI
›
Inhibitor Switch
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

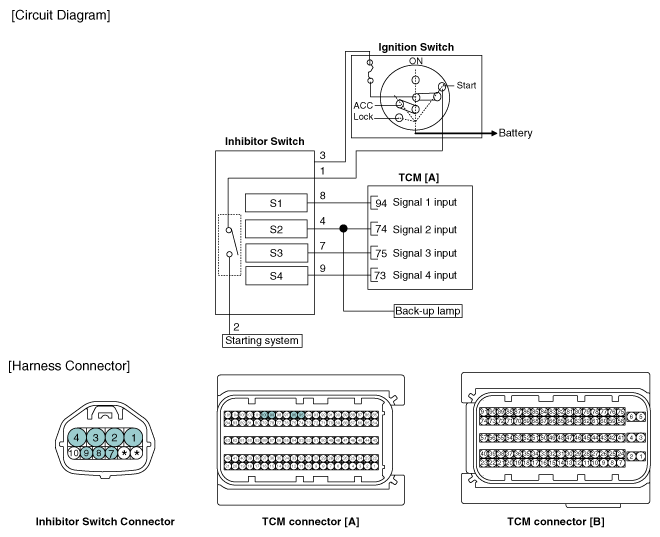

Fig 1: Inhibitor Switch Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
