Inhibitor Switch: Troubleshooting

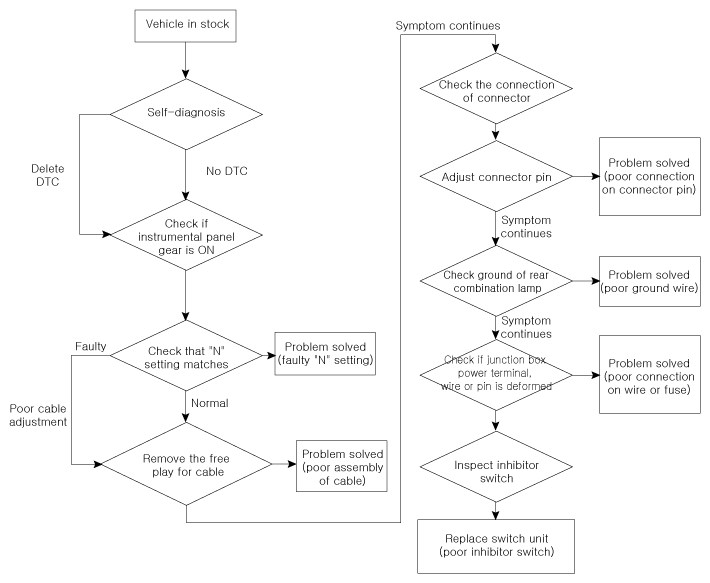

Fig 1: Inhibitor Switch Troubleshooting Procedure Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
