Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System - 2.0L GDI
›
Oil Temperature Sensor (Main Harness)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

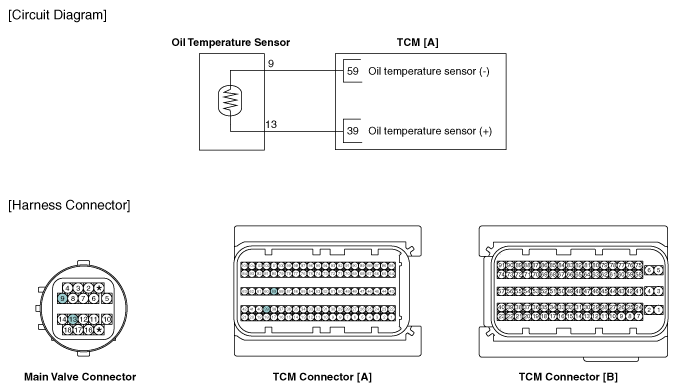

Fig 1: Oil Temperature Sensor Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
