Repair Procedures: Removal

Release the residual pressure in fuel line (Refer to the Fuel Delivery System - Repair Procedures - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Remove the rear seat cushion (Refer to [REAR SEAT CUSHION ).

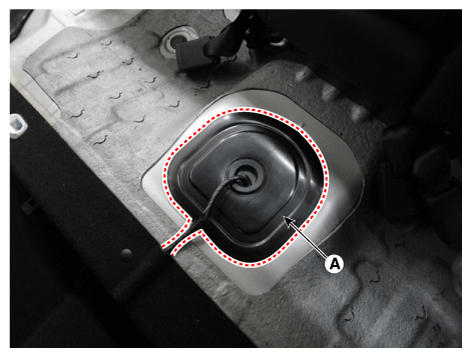

Remove the fuel pump service cover (A).

Fig 1: Removing Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.

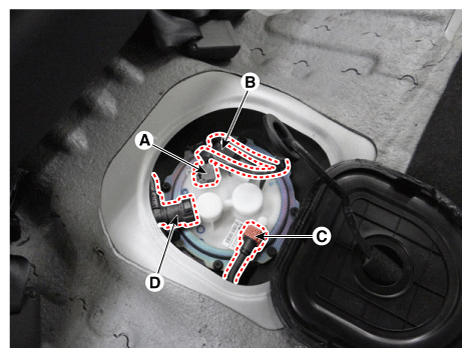

Disconnect the fuel pump connector (A), fuel tank pressure sensor connector (B), fuel feed tube quick connector (C) and vapor tube quick connector (D).

Fig 2: Disconnecting Fuel Pump Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear - LH wheel & tire.
Lift the vehicle and support the fuel tank with a jack.

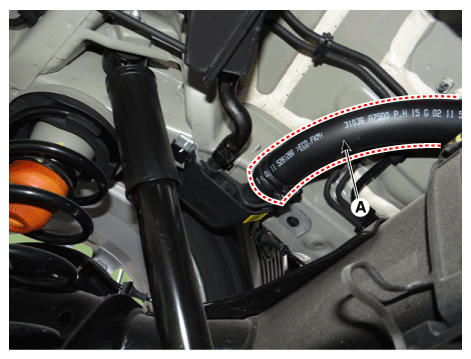

Disconnect the fuel filler hose (A).

Fig 3: Disconnecting Fuel Filler Hose
Courtesy of KIA MOTORS AMERICA, INC.

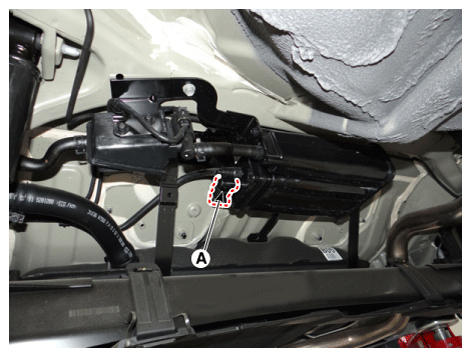

Disconnect the vapor tube quick-connector (A).

Fig 4: Disconnecting Vapor Tube Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.

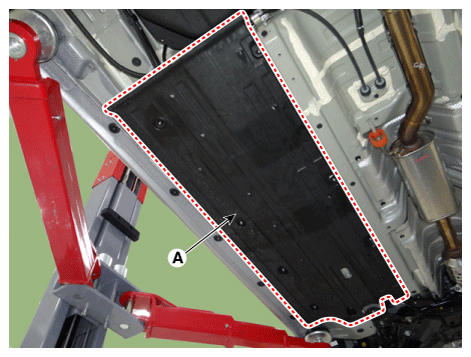

Remove the under cover (A) after loosening the mounting nuts.

Fig 5: Removing Under Cover (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

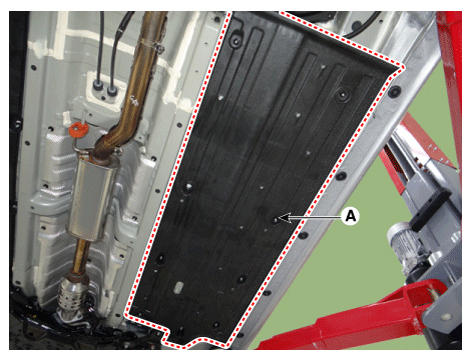

Fig 6: Removing Under Cover (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

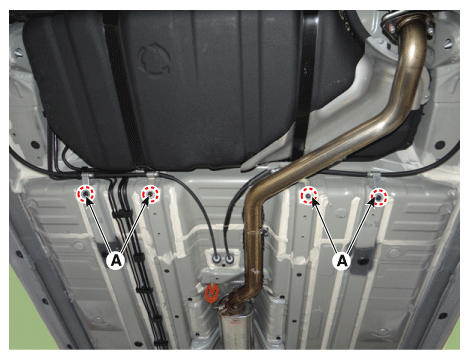

Remove the brake parking cable after loosening the mounting bolts (A).

Fig 7: Removing Brake Parking Cable Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")

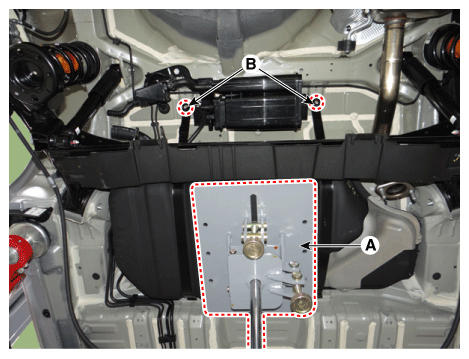

Support the fuel tank with a jack (A).
Remove the fuel tank band mounting nuts (B).
Fuel Tank Band Mounting Nut:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Fig 8: Removing Fuel Tank Band Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

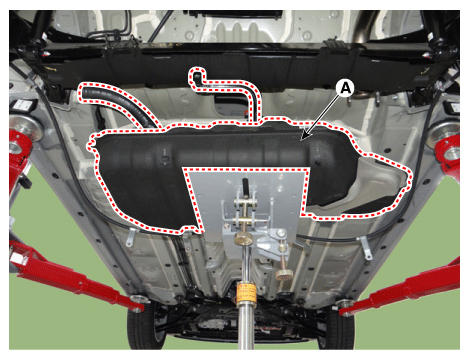

Remove the fuel tank (A).

Fig 9: Removing Fuel Tank
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
