Manual Transaxle System - 2.0L MPI Nu
›
Manual Transaxle
›
Components And Components Location
›
Components
Components And Components Location: Components

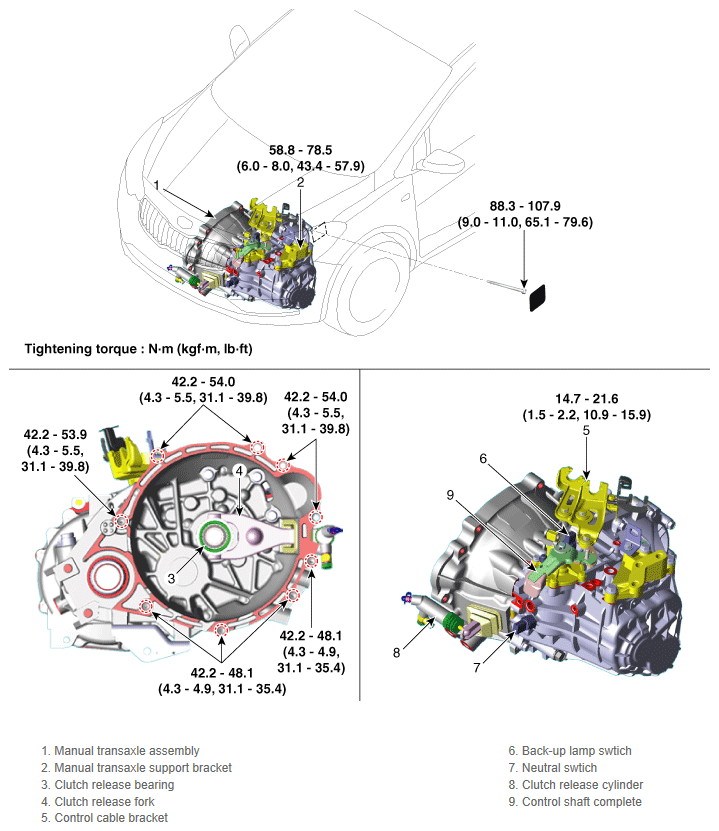

Fig 1: Manual Transaxle Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
