Integrated Memory System (IMS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

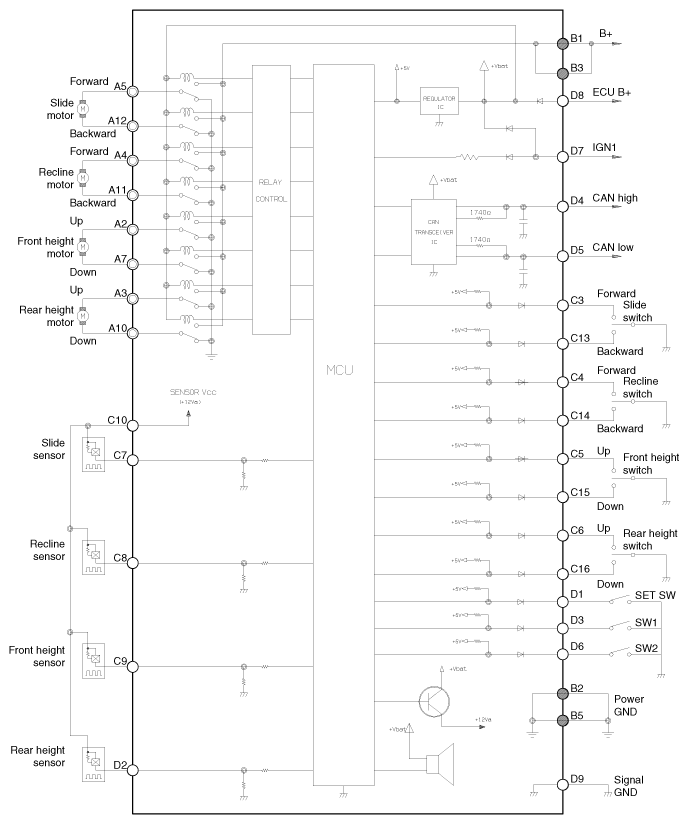

Fig 1: Integrated Memory System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
