FixVault
Home
›
Kia
›
2017
›
Forte S
›
Repair and Diagnosis
›
Drivelines & Axles
›
Axle Shafts
›
Driveshaft Assembly
›
TJ Joint
›
Components And Components Location
›
Components
›
[LH]
Components And Components Location: Components: [LH]

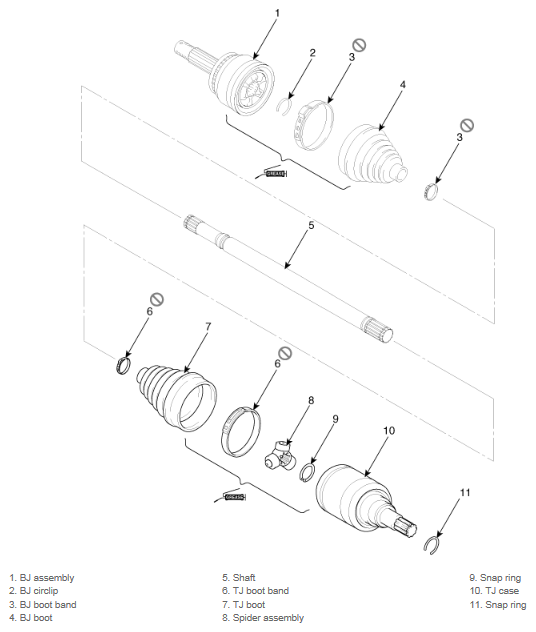

Fig 1: TJ Joint Components Location (LH)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
