Repair Procedures: Disassembly

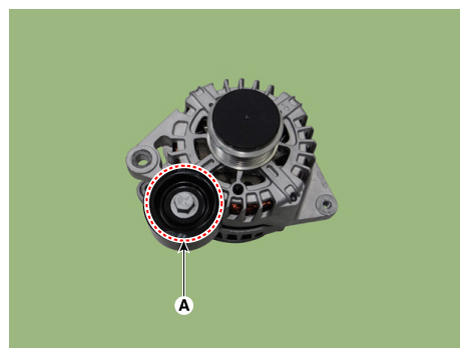

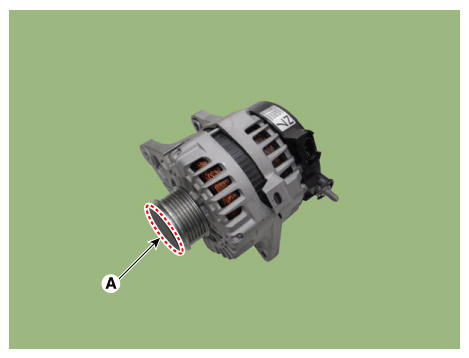

1. Remove the pulley (A) after loosening the mounting bolt.
   Fig 1: Removing Pulley Mounting Bolt

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the OAP cap (A).
   Fig 2: Removing OAP Cap

   Courtesy of KIA MOTORS AMERICA, INC.

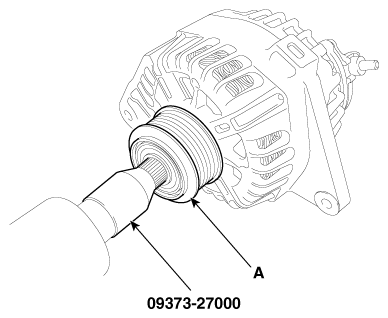

3. Using the SST (09373-27000), remove the OAP pulley (A).
   Fig 3: Removing OAP Pulley

   Courtesy of KIA MOTORS AMERICA, INC.

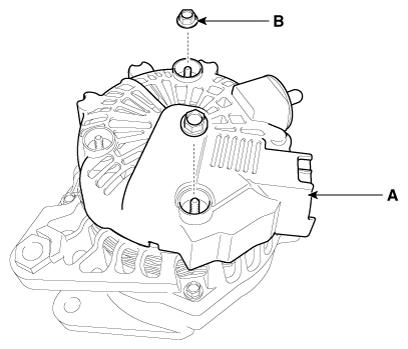

4. Remove the rear cover (A) after removing nuts (B).
   Fig 4: Removing Rear Cover Nuts

   Courtesy of KIA MOTORS AMERICA, INC.

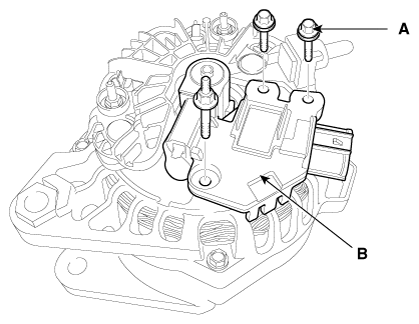

5. Remove the mounting bolts (A) and the regulator assembly (B).
   Fig 5: Removing Mounting Bolts And Regulator Assembly

   Courtesy of KIA MOTORS AMERICA, INC.

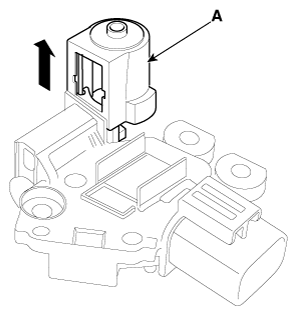

6. Remove the slip ring guide (A) after pulling it.
   Fig 6: Removing Slip Ring Guide

   Courtesy of KIA MOTORS AMERICA, INC.

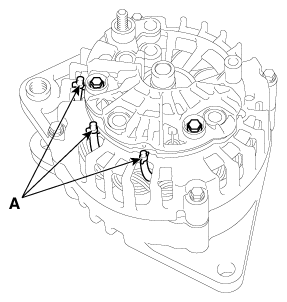

7. Unsolder the 3 stator leads (A).
   Fig 7: Unsolder Stator Leads

   Courtesy of KIA MOTORS AMERICA, INC.

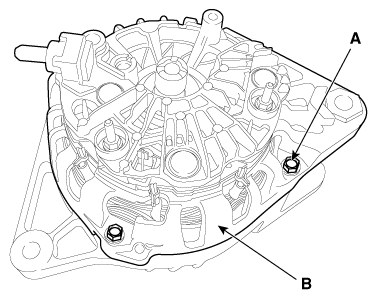

8. Remove the 4 through bolts (A).
   Fig 8: Removing Through Bolts

   Courtesy of KIA MOTORS AMERICA, INC.

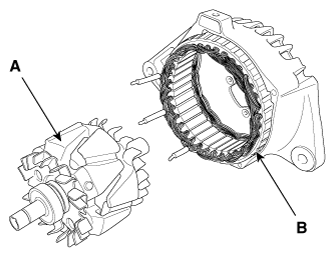

9. Disconnect the rotor (A) and housing (B).

Fig 9: Disconnecting Rotor And Housing

Courtesy of KIA MOTORS AMERICA, INC.
