Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Disconnect the VFS connector (A).
  3. Remove the mounting screws (B), and then remove the VFS from the engine.

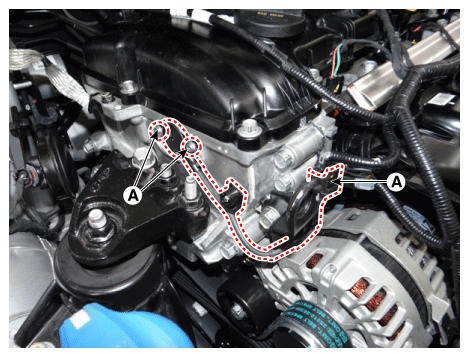

Fig 1: Disconnecting VFS Connector
G12165654Courtesy of KIA MOTORS AMERICA, INC.
