Components Location

[SULEV Type]

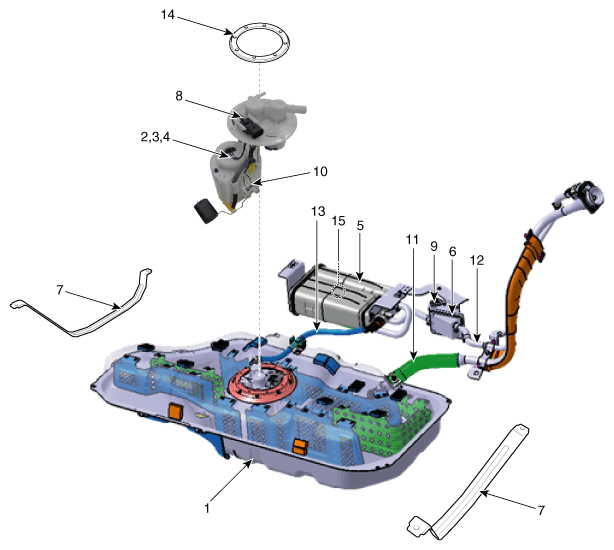

Fig 1: Fuel Delivery System Components (SULEV Type)
G12165675Courtesy of KIA MOTORS AMERICA, INC.

[LEV2 Type]

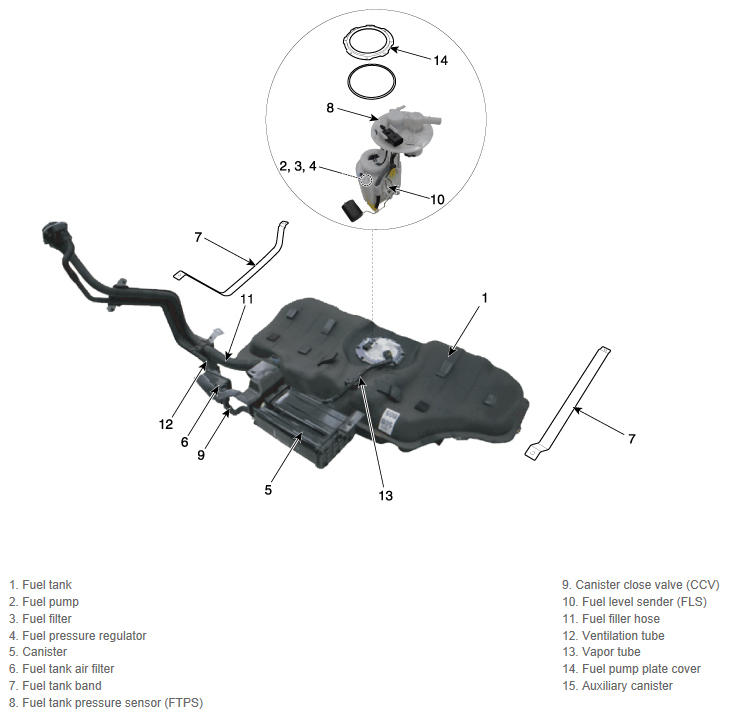

Fig 2: Fuel Delivery System Components (LEV2 Type)
G12165676Courtesy of KIA MOTORS AMERICA, INC.
