Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ".)
Turn the ignition switch OFF, and then remove battery (-) terminal.

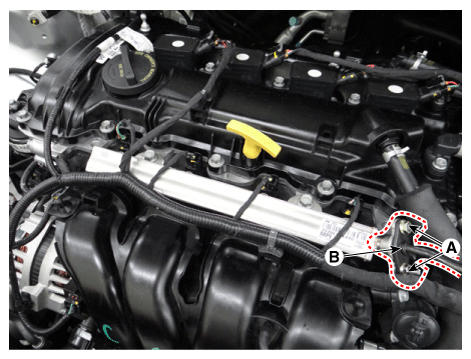

Remove the installation nut (A), and then disconnect the fuel feed tube (B).
Delivery Pipe Installation Nut (↔ Fuel Feed Tube):

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Fig 1: Disconnecting Fuel Feed Tube
Courtesy of KIA MOTORS AMERICA, INC.

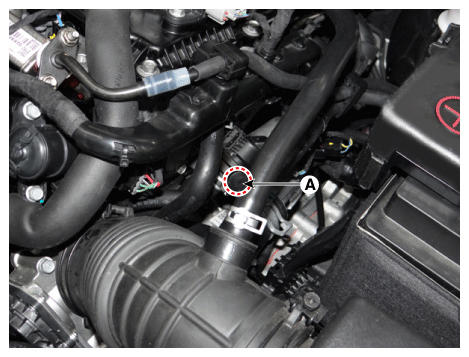

Disconnect the vapor hose (A) which is connected from the PCSV.

Fig 2: Disconnecting Vapor Hose From PCSV
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")
Remove the center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")

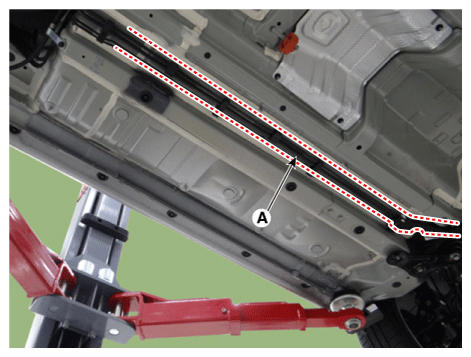

Remove the fuel line fixing clip mounting bolt (A).

Fig 3: Removing Fuel Line Fixing Clip Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

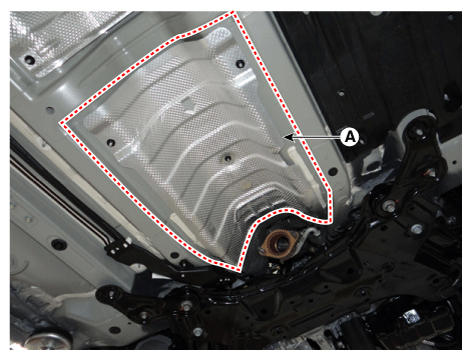

Remove the heat protector (A) after loosening the mounting nuts.

Fig 4: Removing Heat Protector
Courtesy of KIA MOTORS AMERICA, INC.

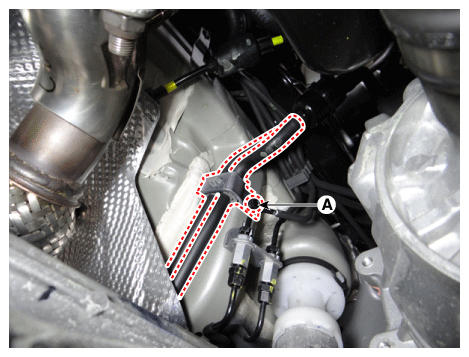

Remove the fuel line (A).

Fig 5: Removing Fuel Line
