Monitor KDS/GDS Data

Connect KDS/GDS to DLC (Data Link Cable).
Warm up the Engine to normal operating temperature.
Check the "Current Data" about related DTC with KDS/GDS.
Specification: Refer to Fig 1

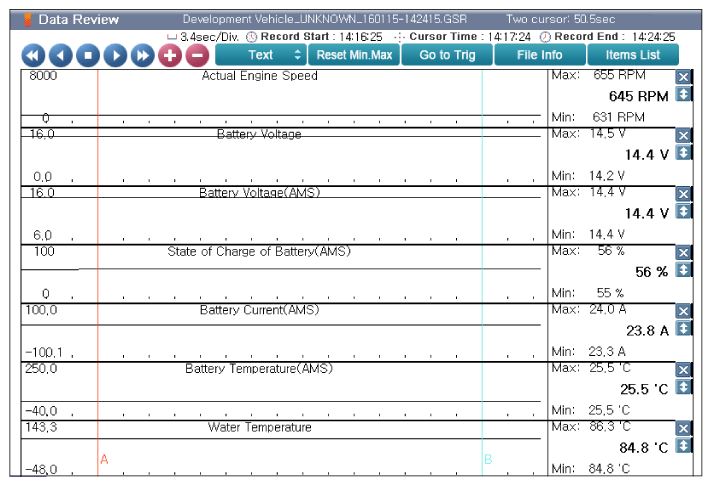

Fig 1: Screen Display - Current Data At Engine Idle
Courtesy of KIA MOTORS AMERICA, INC.
Are the parameters displayed correctly?
YES
- Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.
NO
- Go to "Wiring Inspection " procedure.
