Section 184 (Lighting System)
›
Vanity Lamp
›
Repair Procedures
›
Removal
›
Bulb Replacement
Bulb Replacement
WARNING:
This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

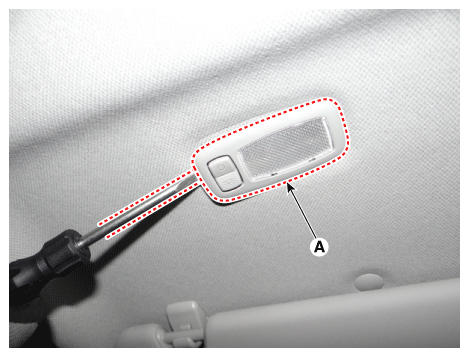

Detach the vanity lamp (A) using a flat-tip screwdriver.
Fig 1: Detaching Vanity Lamp Using Flat-Tip Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.

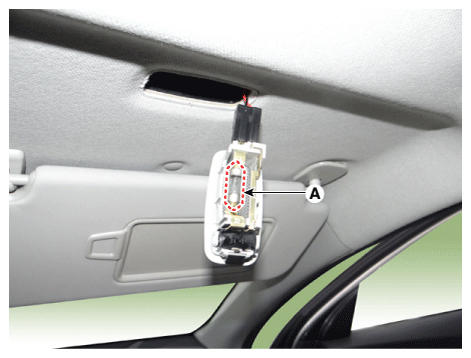

Remove the vanity lamp bulb (A).
Fig 2: Removing Vanity Lamp Bulb
Courtesy of KIA MOTORS AMERICA, INC.
