Repair Procedures: Inspection

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the BSD switch connector.

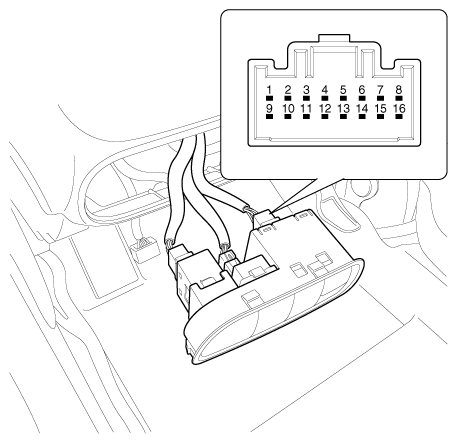

Fig 1: Disconnecting BSD Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Operate the BSD switch, then check for continuity between terminals and BSD switch connector.

Fig 2: BSD Switch Connector Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
