Repair Procedures: Replacement

Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

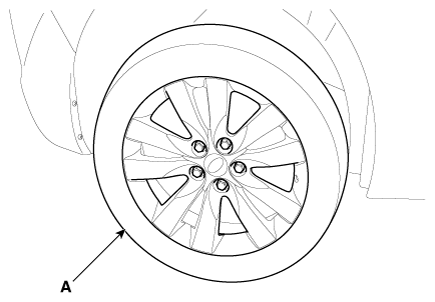

Fig 1: Locating Front Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Be careful not to damage to the hub bolts when removing the rear wheel and tire (A).
Remove the rear shock absorber (A) from the frame by loosening the bolt.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

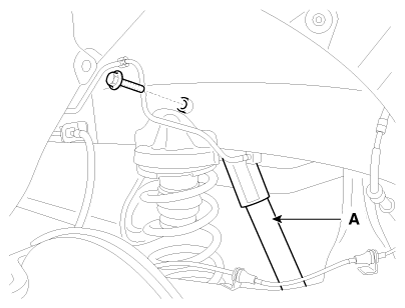

Fig 2: Locating Rear Shock Absorber With Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt & nut and then remove the rear shock absorber (A) from the torsion beam axle.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

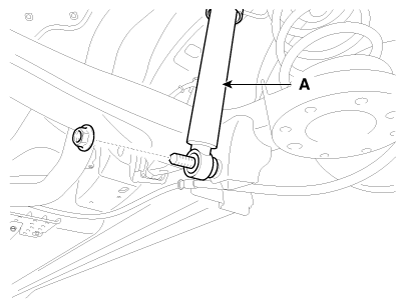

Fig 3: Locating Rear Shock Absorber With Bolt & Nut
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
Check the rear alignment.
(Refer to Rear Suspension System - "REAR ALIGNMENT ")
