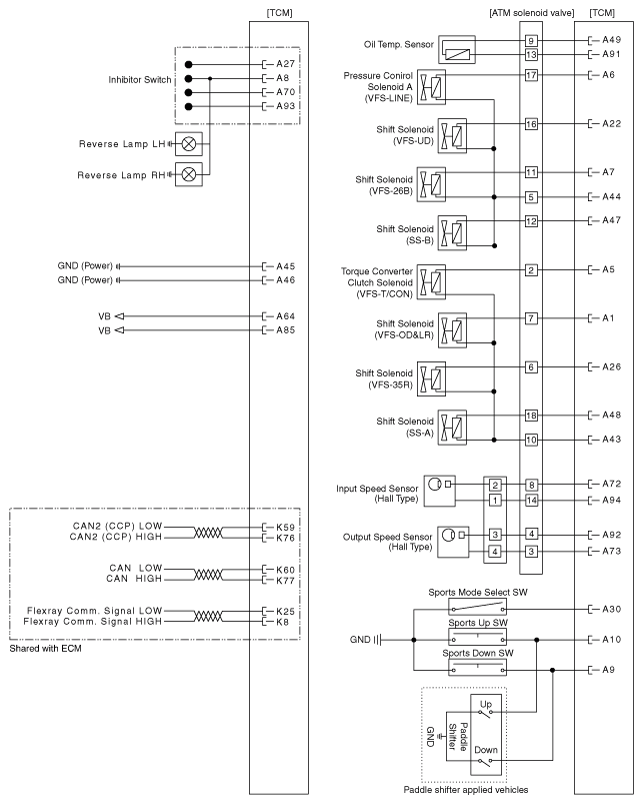

Home › Kia › 2017 › Forte S › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L MPI Nu (A6GF1) › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram
