Repair Procedures: Inspection

Switch "OFF" ignition.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER - 2.0L MPI NU ")
Disconnect the main connector (A).

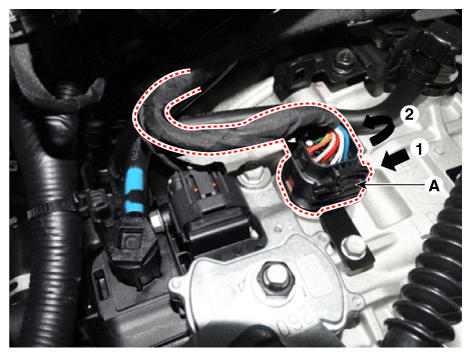

Fig 1: Disconnecting Main Connector
Courtesy of KIA MOTORS AMERICA, INC.
Measure the resistance between + terminal (9) and - terminal (13).

Fig 2: Oil Temperature Sensor Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
